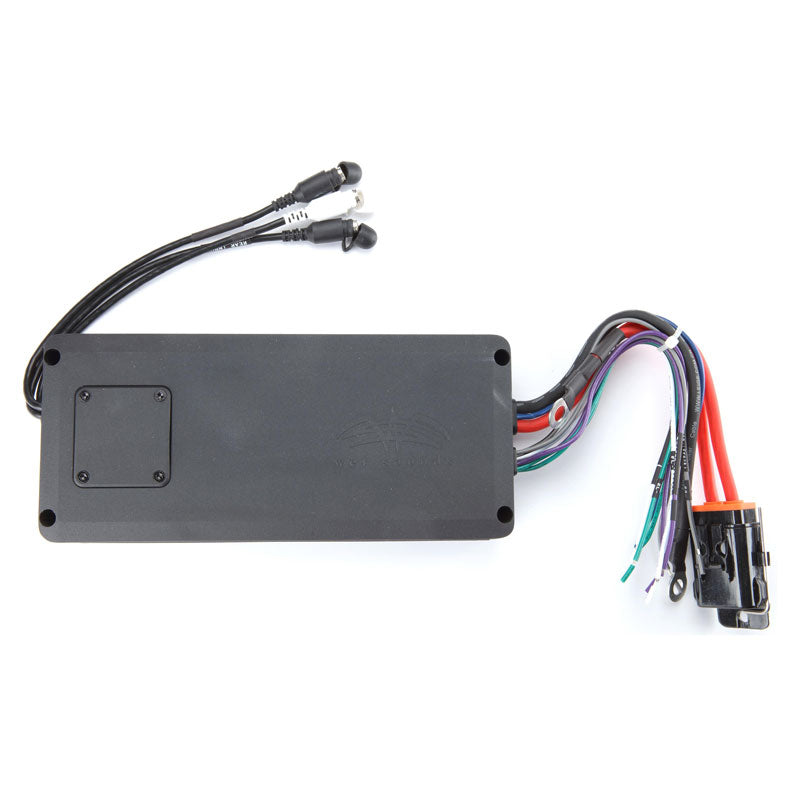

Wet Sounds Marine amplifier STX MICRO-4

The STX Micro-1 and STX Micro-4 Compact chassis Class D Amplifiers by Wet Sounds, are the latest innovative products designed for the Power Sports enthusiast. The small yet powerful amplifiers are designed with a completely sealed die cast aluminum chassis for maximum protection against water and dirt intrusion. Both STX models are outfitted with 3.5mm signal input connections to work seamlessly with our Bluetooth controllers (BTVCC) or direct connection to most smart phone’s headphone output.

The STX Micro-1 mono block subwoofer amplifier has output power capability of 420Wx1 into 2 Ohms & 600 Wx1 into 1 Ohm and also includes fully variable Bass Boost and adjustable low pass crossover.

The STX Micro-4 has a rated output power capability of 80wx4 into 4 Ohms & 130 Wx4 into 2 Ohms. Bridged power on the STX Micro-4 is 280Wx2 into 4 Ohms, with fully variable high pass/low pass crossovers. A set of pass-through outputs on the STX Micro-4 allows connection to a second amplifier, and the multichannel switching mode enables all four channels of output with only 2 channels of input, eliminating the need for Y adaptors. Created for the limited space in many ATV/UTV vehicles, with a chassis size of 9.25 inches long, 4 inches wide, and a height of 1.5 inches, the STX Micro-1 and STX Micro-4 pack amazing power into a minimum footprint!




Power Output @ 4 OHMS:
80W x 4


Power Output @ 4 OHMS:
280W x 2


Power Output @ 2 OHMS:
130W x 4


S/N Ratio @ 1 Watt:
> 95dB


Frequency Response:
10 Hz – 40 kHz


Total Harmonic Distortion:
0.05%


Input Sensitivity Range:
150mV – 7V


Dimensions:
9.25” L x 4” W x 1.5” H


Channels:
4


Series:
Stealth STX




What Is Not Covered

This warranty does not cover fading or discoloration caused by exposure to sunlight or chemicals such as ammonia, household bleach, or any cleaning material that contains abrasive substances. (For information on how to prevent fading or discoloration, consult for recommendations on cleaning products) Wet Sounds, Inc. does not cover the cost for removal and reinstallation of any kind. Additionally, shipping TO Wet Sounds, Inc. is covered by the purchaser This warranty is void and inapplicable if Wet Sounds deems that the product was abused or misused; including but not limited to Speaker product that has been improperly-powered (under or over powered), causing thermal (burnt voice coil) and/or mechanical failure (torn surrounds or spiders), damage caused by accident, mishandling, improper installation, negligence, normal wear and tear, excessive water or heat damage, freight damage or products that have been altered in any way. Product owned by anyone other than the original purchaser from an authorized Wet Sounds dealer. (The warranty is not transferable and will not apply to products purchased from unauthorized dealers.) Wet Sounds is not responsible for any damages to a consumer's boat or person from a product failure. The warranty is void if Wet Sounds deems the product was installed or used improperly. Wet Sounds shall not be responsible for any incidental or consequential damages, except to the extent provided (or prohibited) by applicable law. This warranty gives you specific legal rights, and you may also have other rights which vary from state.

What Wet Sounds, Inc. Will Do

Wet Sounds, Inc will repair any part of your product that proves to be defective in materials or workmanship. In the event repair is not possible, Wet Sounds, Inc will replace the product in question. If it is deemed necessary Wet Sounds, Inc. will either replace the entire product with a refurbished unit or it will be replaced with a model that is similar in price if that model is no longer available. Labor cost and materials needed to complete this service will be at no charge to the purchaser. Additionally, the cost of shipping TO the consumer is also covered under this warranty.

How to Obtain Warranty Service

Contact Wet Sounds, Inc. either by phone at 877-938-7757 or by email at WARRANTY@WETSOUNDS.COM. A service representative will assist you in the necessary actions to verify that the problem that you are experiencing is covered under warranty. If it is in fact a warranty issue, Wet Sounds will issue an RA number for tracking purposes and give instructions on sending the product in for evaluation. Wet Sounds, Inc. How State Law Applies This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Internet Warning

Wet Sounds, Inc. products sold on any non authorized web site or internet auction site are void of any and all manufacturer's warranty. Please contact Wet Sounds at 877-938-7757 or visit our web site at WWW.WETSOUNDS.COM to search for an authorized site and/or an authorized retailer near you.

Wet Sounds STX MICRO-4 4-Channel 4 x 130W RMS at 2 Ohms, Class-D Marine Amplifier

We are a Wet Sounds authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• 4-Channel Amplifier with 9" power/signal pigtails on both ends
• (2) 25A ATO fuses (installed in-line on power cable)
• (4) Self-tapping screws (length=3/4")
• (4) Mounting feet
• 2.5mm Allen wrench
• 2mm Allen wrench (attached to fuse holder)
• Minijack input for outboard audio devices
• Owner's Manual





Compact and Powerful Marine-grade Amplifier

The Wet Sounds STX MICRO-4 is a compact and powerful marine-grade amplifier designed to deliver exceptional audio performance on the water. With its compact size and versatile features, this amplifier is perfect for boats where space is limited.

Reproduction While Minimizing Power Consumption

The STX MICRO-4 features a maximum power output of 320 watts, with four channels for connecting multiple speakers or subwoofers. Its efficient Class D design ensures high-quality sound reproduction while minimizing power consumption.

Can Handle the Rigors of Marine Use, Including Exposure to Water, Humidity, and Uv Rays

This marine amplifier is built to withstand the harsh marine environment, thanks to its conformal-coated PCB and water-resistant design. It can handle the rigors of marine use, including exposure to water, humidity, and UV rays.

Adjustable Gain Controls and High- and Low-pass Filters.

The STX MICRO-4 offers various tuning options, including adjustable gain controls and high- and low-pass filters, allowing you to fine-tune your audio system according to your preferences. It also features a compact chassis, making it easier to install in tight spaces.

Robust Construction, Versatile Features, and Powerful Performance

With its robust construction, versatile features, and powerful performance, the Wet Sounds STX MICRO-4 is an excellent choice for marine enthusiasts looking to enhance their boat's audio system with a compact and reliable amplifier.

SPECIFICATIONS

Number of Channels : 4

Frequency Response : 10-40000 Hz

Built In Crossovers : Yes

RMS Power Output : 4x130 Watts

Channel Separation : Yes

Amplifier Class : D

Fuse Rating : 50 A

FEATURES

Features:

Compact and Rugged Design: Sealed die-cast aluminum chassis for maximum water and dirt protection; designed for Power Sports enthusiasts in ATV/UTV vehicles.
Versatile Signal Input Connections: Equipped with 3.5mm signal input connections for seamless integration with Bluetooth controllers (BTVCC) or direct smartphone headphone outputs.
STX Micro-1 Mono Block Subwoofer Amplifier: Output power of 420Wx1 into 2 Ohms & 600Wx1 into 1 Ohm; features fully variable Bass Boost and adjustable low pass crossover.
STX Micro-4 Multichannel Amplifier: Output power of 80Wx4 into 4 Ohms & 130Wx4 into 2 Ohms; bridged power of 280Wx2 into 4 Ohms. Includes fully variable high pass/low pass crossovers for precise audio tuning.
Pass-Through Outputs and Multichannel Switching: Allows connection to a second amplifier via pass-through outputs on STX Micro-4; multichannel switching mode enables four channels of output with only two channels of input, eliminating the need for Y adaptors.
Space-Saving Dimensions: Chassis size of 9.25 inches long, 4 inches wide, and 1.5 inches high; perfect for installations where space is limited.


Specifications:

RMS Power Output (Watts x Channels): 80 x 4
THD at Rated RMS Power: 1%
Signal to Noise Ratio: 95 dB
Input Voltage: 14.4v
Power at 2 Ohms (Watts x Channels): 130 x 4
Bridged Power (Watts x Channels): 280 x 2
Minimum Impedance Bridged: 4
Minimum Impedance Unbridged: 2

UPC: 814820023336
Weight: 6
