• ACX-BT3 All-Weather Bluetooth Controller
  • ACX-BT3 All-Weather Bluetooth Controller
  • ACX-BT3 All-Weather Bluetooth Controller
1 3

AudioControl

AudioControl Audio ACX-BT3

AudioControl Audio ACX-BT3

$219.00 USD
$219.00 USD
Sale Sold out
View full details
Mei from Wide Open Sound

Wide Open Sound · Curated gear

AudioControl Audio ACX-BT3

WOS Pick What you're getting in 10 seconds — expand for full details.

  • BrandAudioControl
  • SKUACX-BT3
Mei says

"Match gear to your install and power budget. Do it once, do it right."

The stuff you'll actually notice
  • The ACX-BT3 is an all-weather Bluetooth® receiver and 3-zone controller designed for the rigors of marine and powersports applications. Beyond an ordinary Bluetooth® receiver, the ACX-BT3 features three stereo RCA outputs and is a zone controller, providing quick ac...
Product description

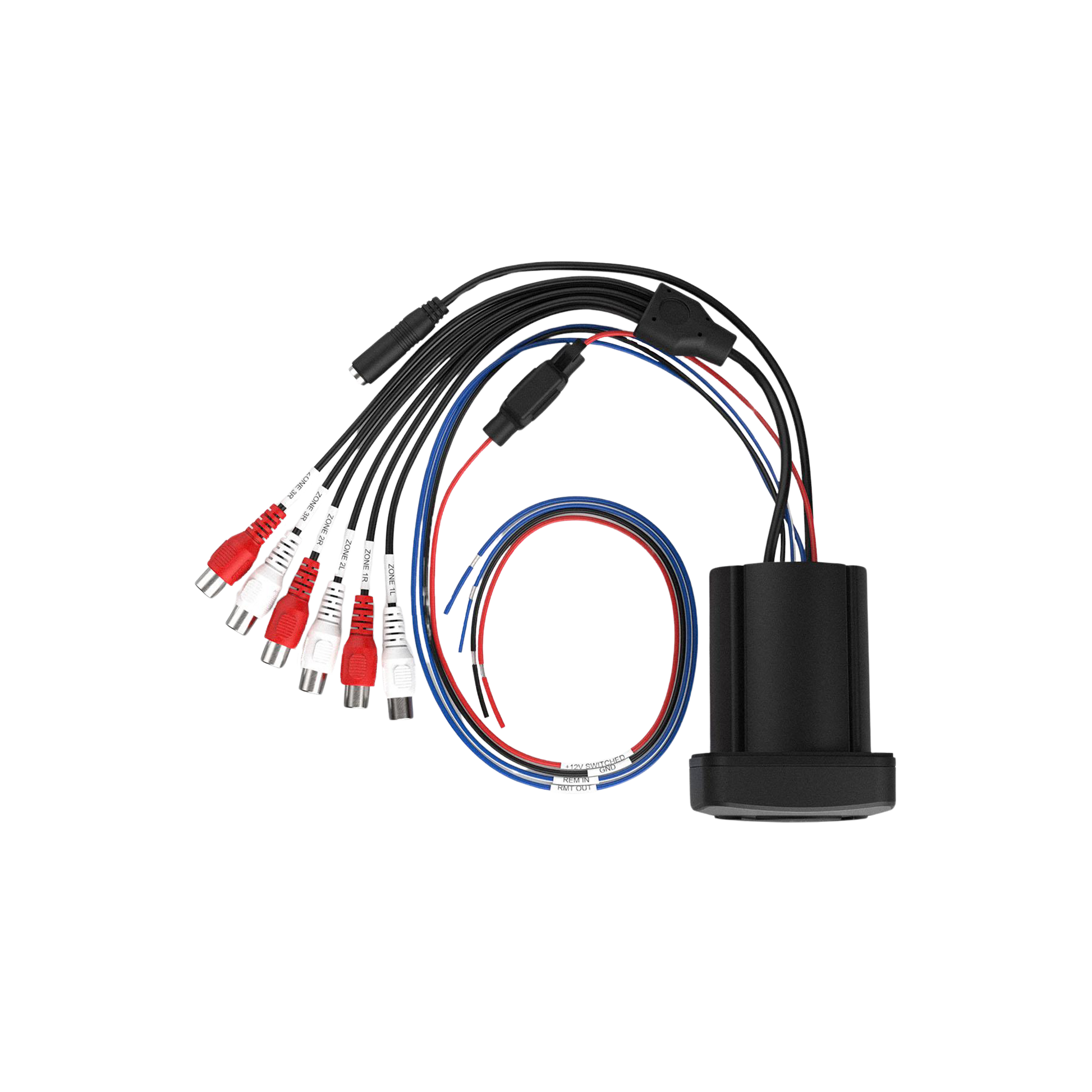

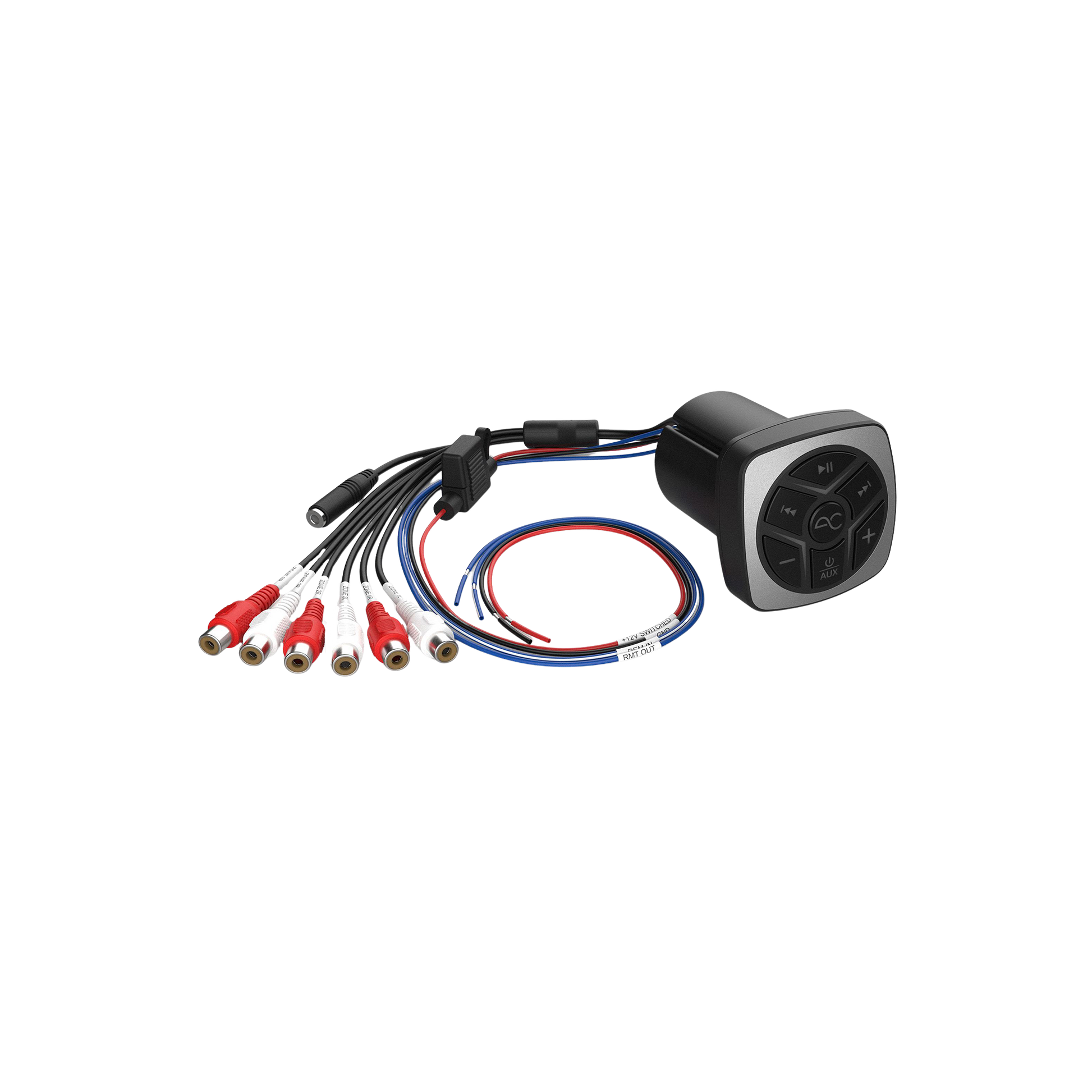

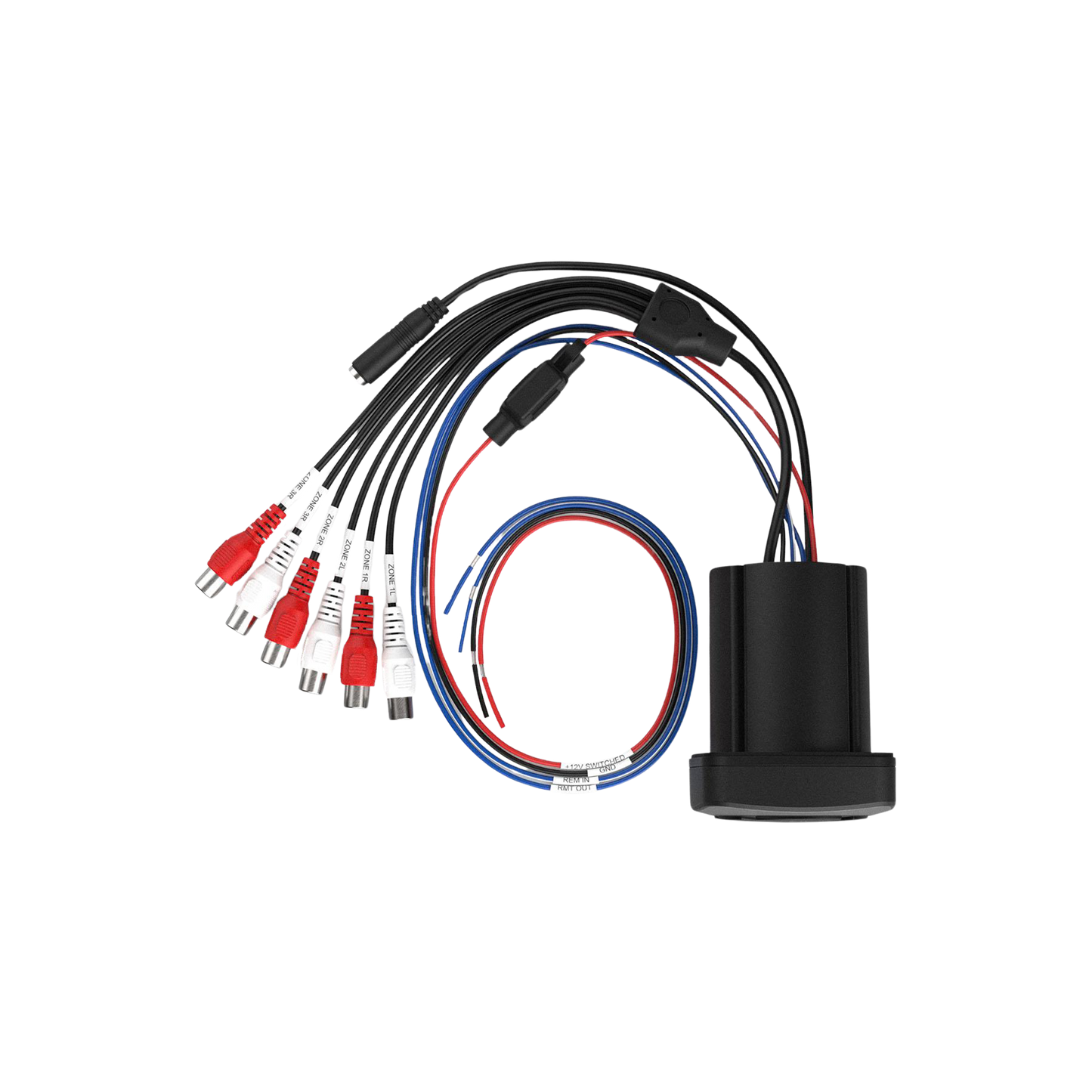

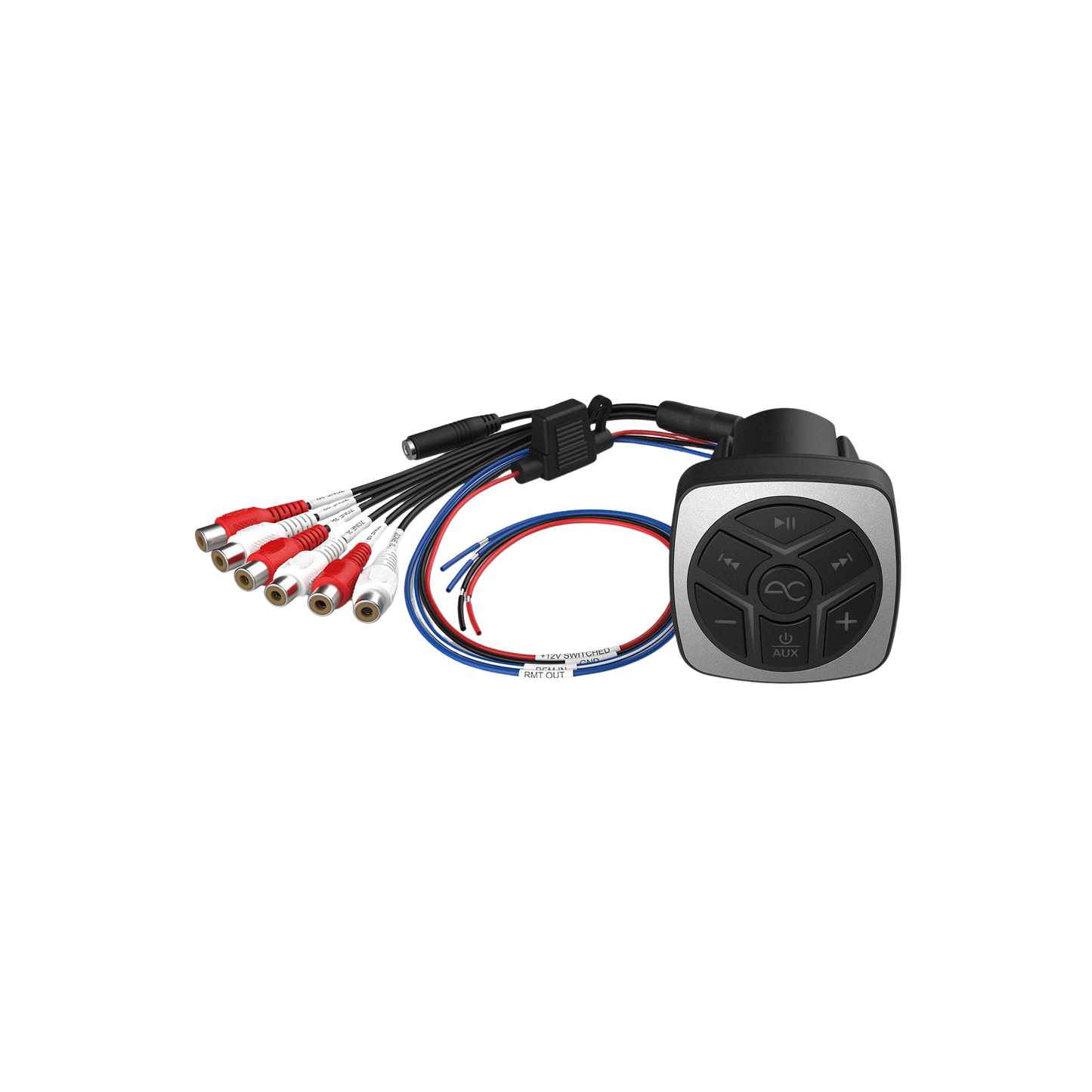

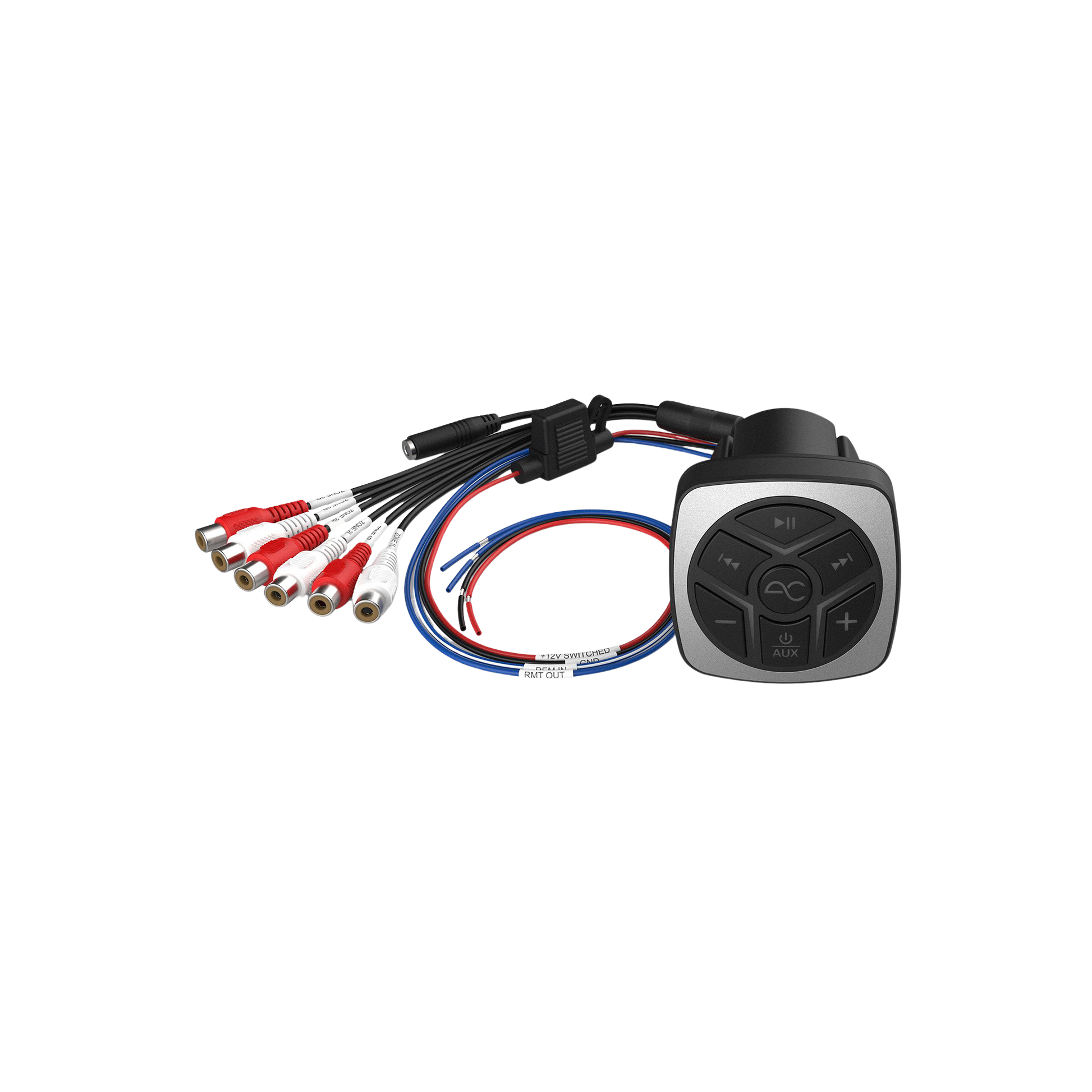

The ACX-BT3 is an all-weather Bluetooth® receiver and 3-zone controller designed for the rigors of marine and powersports applications.

Beyond an ordinary Bluetooth® receiver, the ACX-BT3 features three stereo RCA outputs and is a zone controller, providing quick access to volume control over 3 separate zones at the touch of a button. With the added flexibility of an auxiliary input, the ACX-BT3 is the perfect solution as a primary or secondary source for any audio system. aptX™ HD support coupled with robust 4 Vrms outputs provides the best possible audio quality.

Integrated mounting holes allow for easy custom installation to a dashboard, or other flat panel in a car, side-by-side, boat, or vehicle of your choice. And the all-weather ACX-BT3 is IPX6 rated against splashes, wind and spray, ensuring your music will play on wherever your next adventure takes you.

FEATURES

  • High Definition Low-Latency Audio Streaming
  • aptXTM HD Support
  • 24 bit / 48 kHz Audio Streaming from Devices with aptX Codec
  • IPX6 rated enclosure
  • Built in fuse


SPECIFICATIONS

Bluetooth

  • Version: 5.1
  • aptX HD Compatible

OUTPUT

  • Preamp Outputs: 3 (6 channels)

  • Maximum Output Level: 4 Vrms

PERFORMANCE

  • Signal to Noise Ratio: 95 dB
  • Maximum Data Rate: 3 Mbps (typical 1.6 Mbps)
  • Operating Range: 10+ meters (depending on environment)

GENERAL

  • Current Draw: 100 mA
  • Fuse Rating: 2 A

WEIGHT & DIMENSIONS

  • Dimensions (enclosure): 2.51″L x 2.51″L x 3.17″D
  • Weight: 0.43 lbs. (194 g)

IN THE BOX: ACX-BT3, Mounting Screws, Warranty, User Manual
