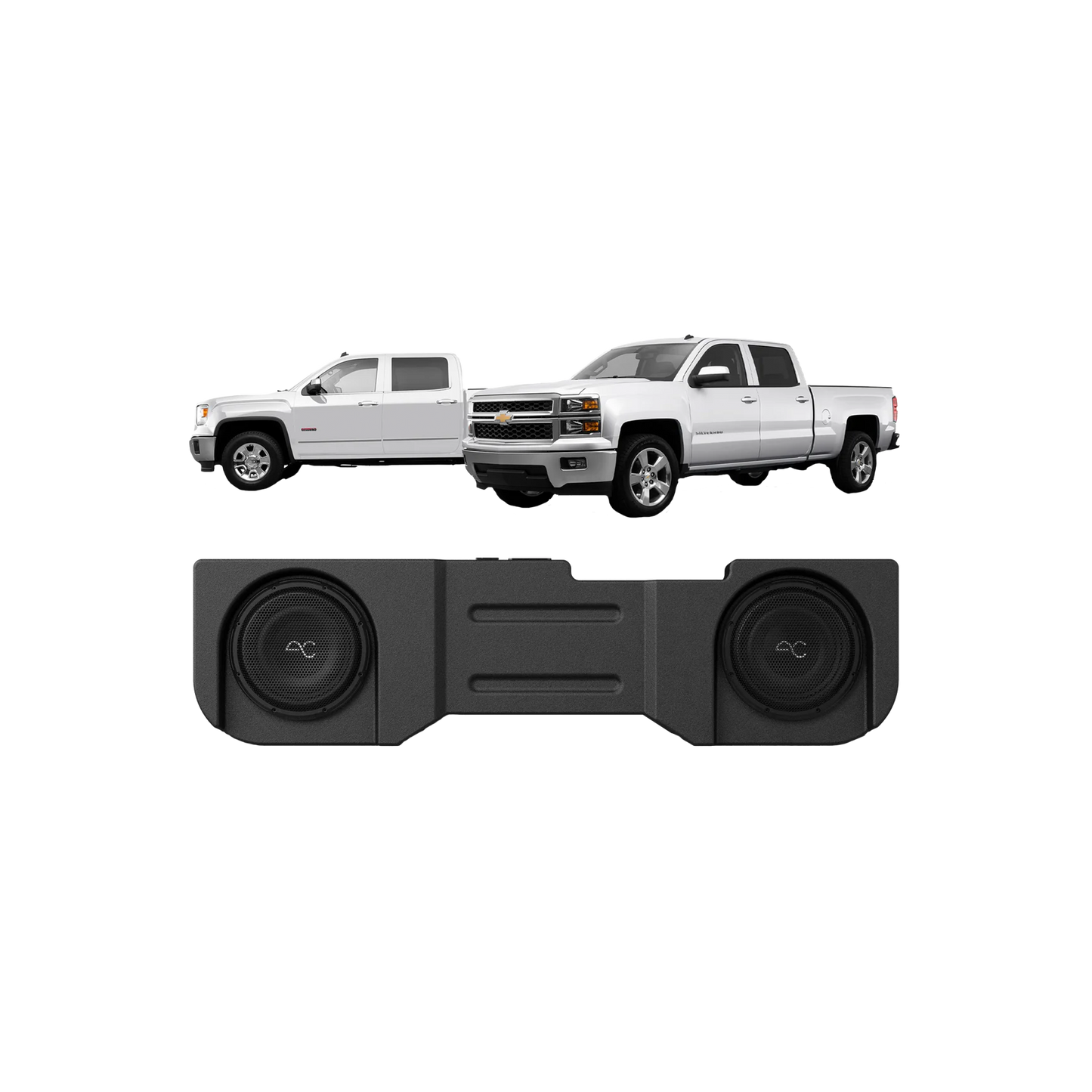

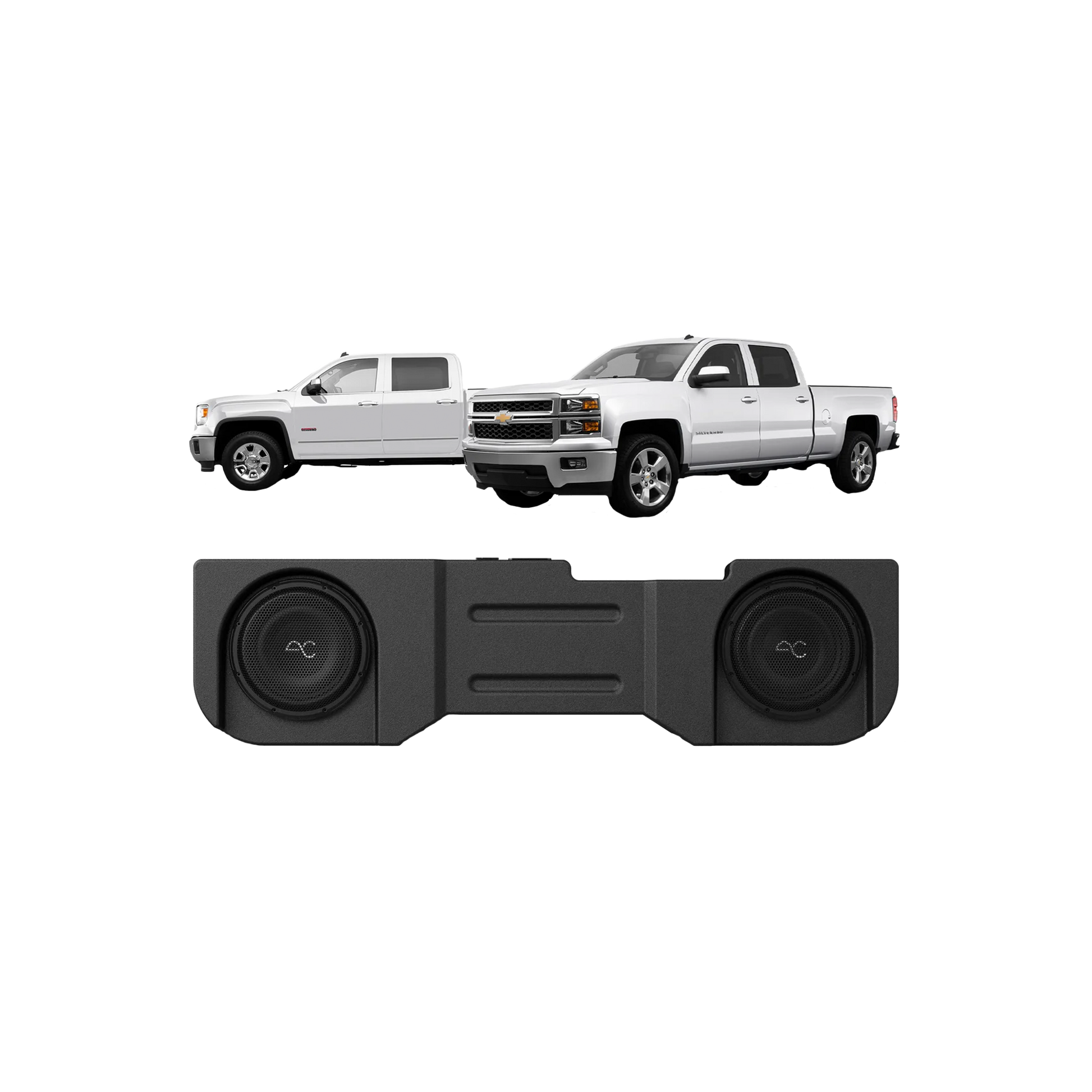

AudioControl Audio TXGM14D10
WOS Pick What these speakers do in 10 seconds — expand for full specs.
- BrandAudioControl
- SKUTXGM14D10
- RMS800
- Ohms4
Mei says"Speakers are where the sound actually happens. Right size + power match = instant upgrade."
The stuff you'll actually notice
- RMS: 800.
Product description

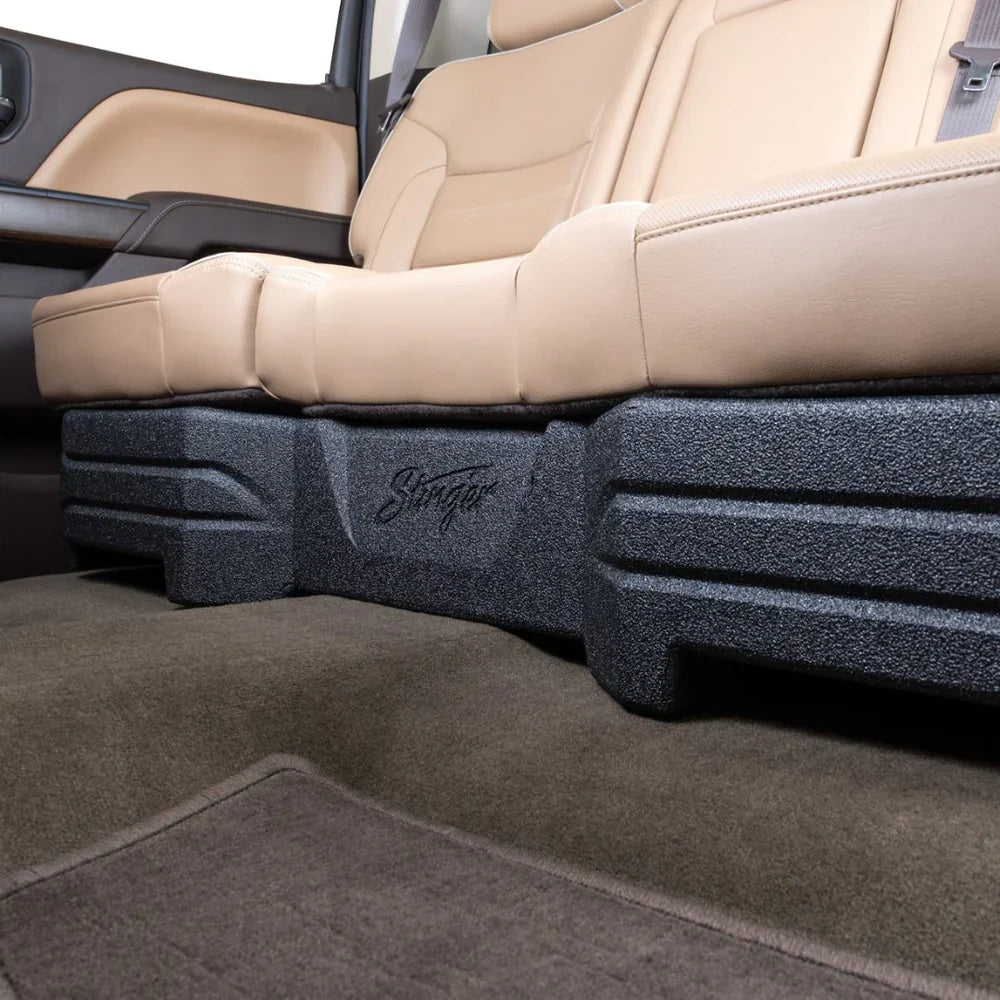

Upgrade your audio experience with our premium loaded subwoofer enclosures! Introducing our vented enclosures loaded with an AudioControl Spike Series Subwoofer. Built to last and deliver superior sound quality, these enclosures are crafted with precision from high-density wood fiberboard.
To ensure maximum durability and resonance control, our enclosures are coated with Roadkill Armor and wrapped in marine-grade vinyl for a sleek finish. Inside, internal support and bracing enhance the performance and longevity of your subwoofer. Say goodbye to distortion and hello to clean, powerful bass.
The dual front mounting baffle design ensures optimal speaker placement for an immersive and powerful audio experience. Filled with poly-fiber material, you’ll enjoy controlled sound dispersion and tight, accurate bass response.
800 Watt RMS / 1200 Watt Max. Install Guide.
Compatibility
Chevy Silverado/GMC Sierra 1500 (2014-18)
Chevy Silverado/GMC Sierra 2500/3500 (2014-19)
ENCLOSURE FEATURES
- Roadkill-Armor Coat
- Permanent Heat Bonded EPM (Elastomeric Polyurethane Molecule) Enclosure Coating
- Weather-Resistant Enclosure for Harsh Outdoor Environments
- Sound Dampening Properties for Resonance Reduction
- Scratch, Crack, and Peel-Resistant
- Chemical and Stain-Resistant
- Impact Absorption
- UV Protection
- Provides Leak and Corrosion Prevention
- Heavy Duty Fiberglass with Internal Bracing
- Poly-Fill Included to Absorb Standing Waves and Reduce Distortion
- Durable, Coated Steel Subwoofer Grille for Extra Protection
- XT-90 Connector Option for quick disconnect
SUBWOOFER FEATURES
-
10” 4Ω Space Series Subwoofers (wired @ 2Ω)
-
400W-1200W Enclosure Power Range (800W Ideal)
- Weather-Resistant Design
- Fiber Matrix Injection Molded Polypropylene Cone for Optimum Sound Reproduction
- Durable Isoprene Polymer Surround
- Powder-Coated Frame
- Wrap-Sealed Rubber Gasket to Protect Enclosure Interior
THERMAL & MECHANICAL ELEMENTS
- 2.5” Black Anodized Voice Coil Former for Superior Heat Dissipation
- Air-Cooled Ventilated Motor Topology for Providing Optimal Thermal Efficiency
- High Tension Stitched Lead Wires for Increased Flexibility at High Excursion
- Shallow Cone Design
- Efficient Motor Design via Magentic FEA Technology
- Micro Level Bonding Adhesive for Increased Strength
- High Density Ferrite Magnet
- Push Style Terminals Provide Consistent Tension For a Reliable Connection
- Grilles Included
- High-Quality Mounting Hardware
SPECS
Speaker Model SPC-10S4 (x2)
Subwoofer Size Dual 10”
Voice Coil Single 4 ohm
DC Resistance (Re) 2 ohm
Sensitivity 1W/M (SPL) 86dB
Frequency Response 20Hz – 250Hz
RMS Power Min 400 watts – Ideal 800 watts
Peak Power 1,200 watts
ENCLOSURE DIMENSIONS
Total Weight 45.6 lbs
Height 7.14in / 18.1356cm
Width 51.18in / 129.9972cm
Depth 13.55in / 34.417cm
