Blaze Audio Constant Beamwidth Speaker BZ-CBL523-PAS-W

Description

Constant Beamwidth Speaker 160deg Horizontal Pattern, Passive, White

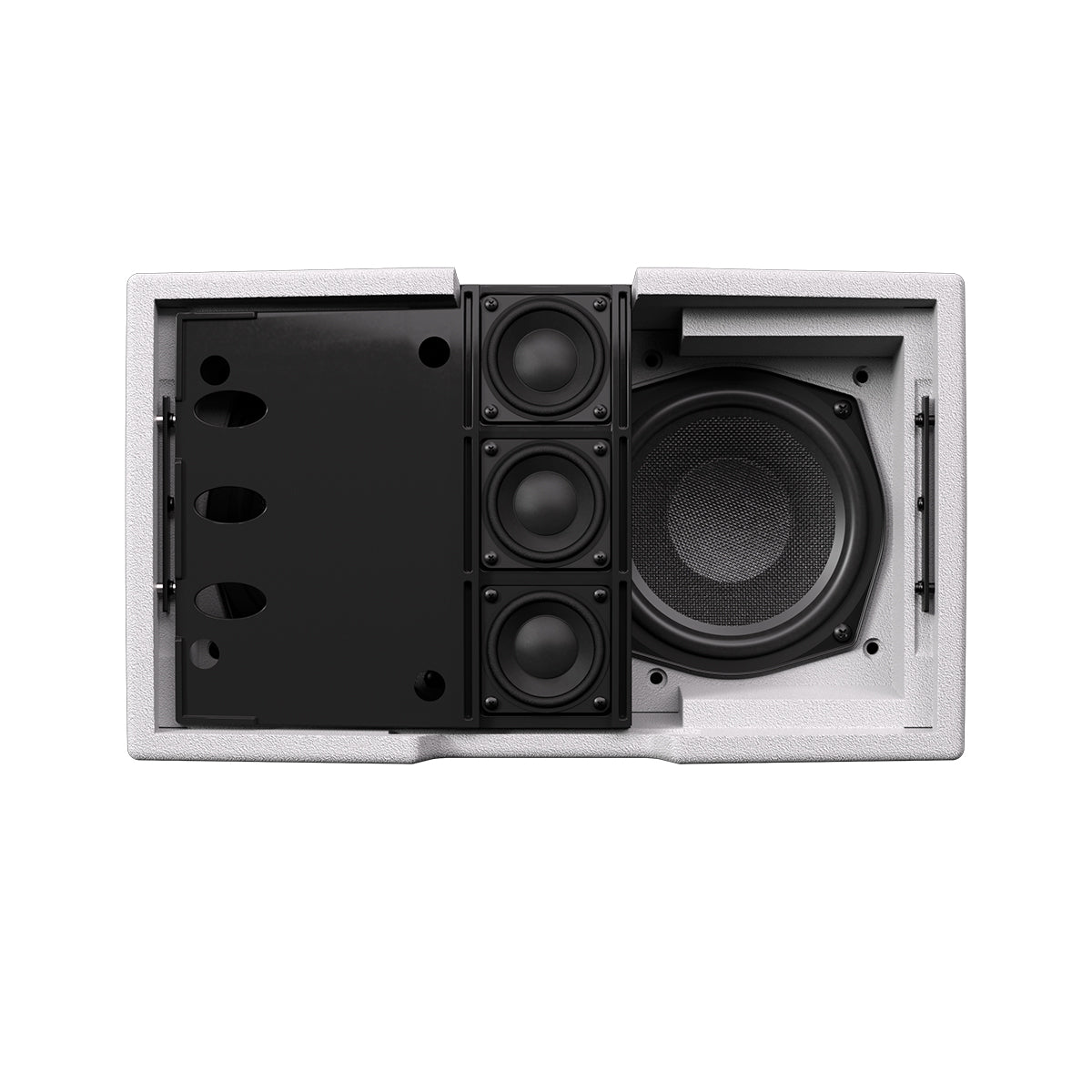

The ultra-compact and innovatively designed CBL523 is a perfect fit where on-wall distributed audio is needed. The 20.5 x 35cm (8″ x 14″) enclosure features two 5” low-frequency drivers complimented by a vertical constant directivity array of three 2” high-frequency drivers, delivering 119dB of maximum SPL in a focused 160° (horizontal) x 55°* (vertical) pattern.

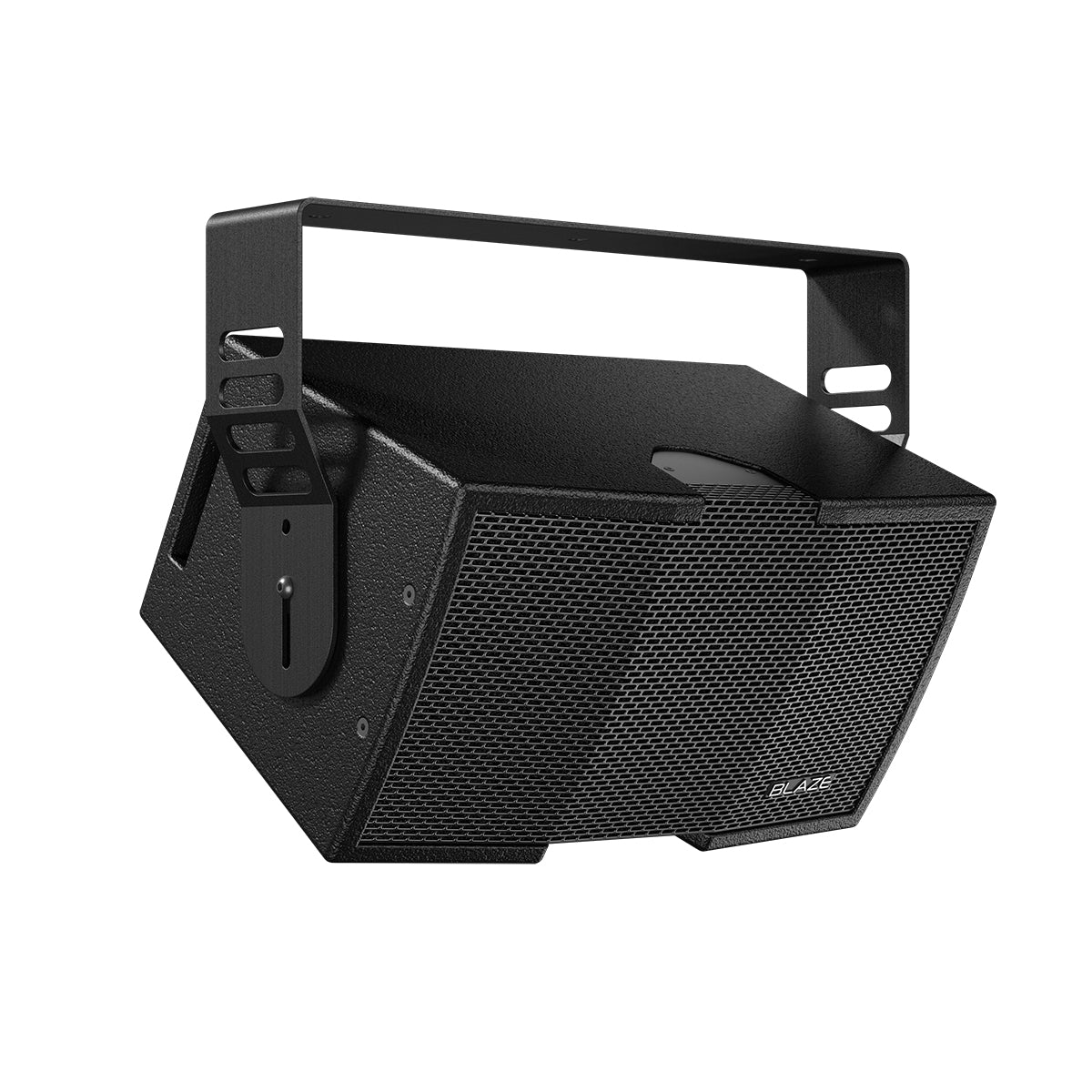

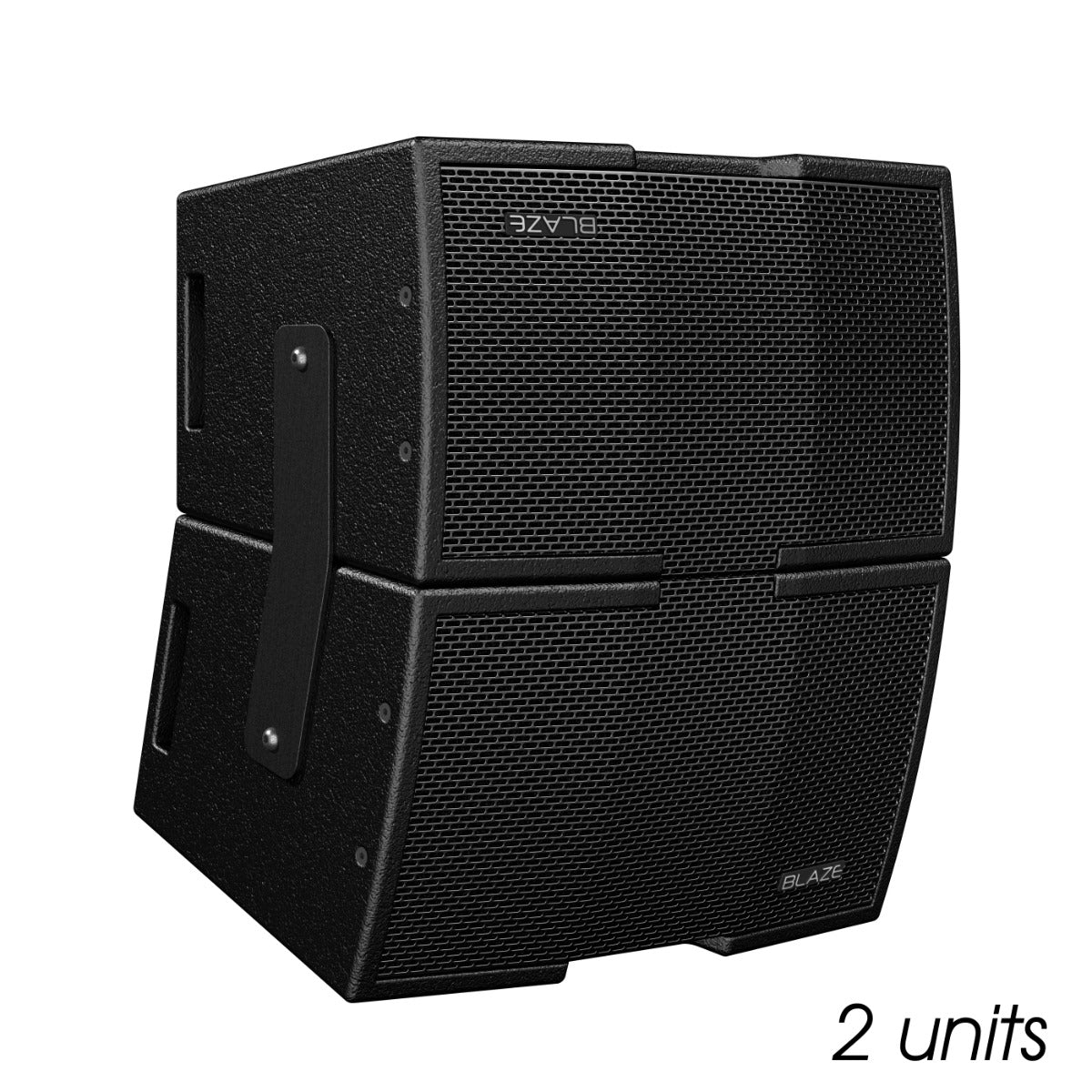

The CBL523 has versatile mounting options with custom designed hardware, as well as the ability to stack and suspend two units together for increased SPL and an increased vertical pattern.

• Two x 5” custom low-frequency drivers.
• Three x 2” mid-high frequency drivers.
• 160° x 55°* Constant Beamwidth pattern.
• 119 dB maximum SPL.
• Symmetrical and compact trapezoidal design.

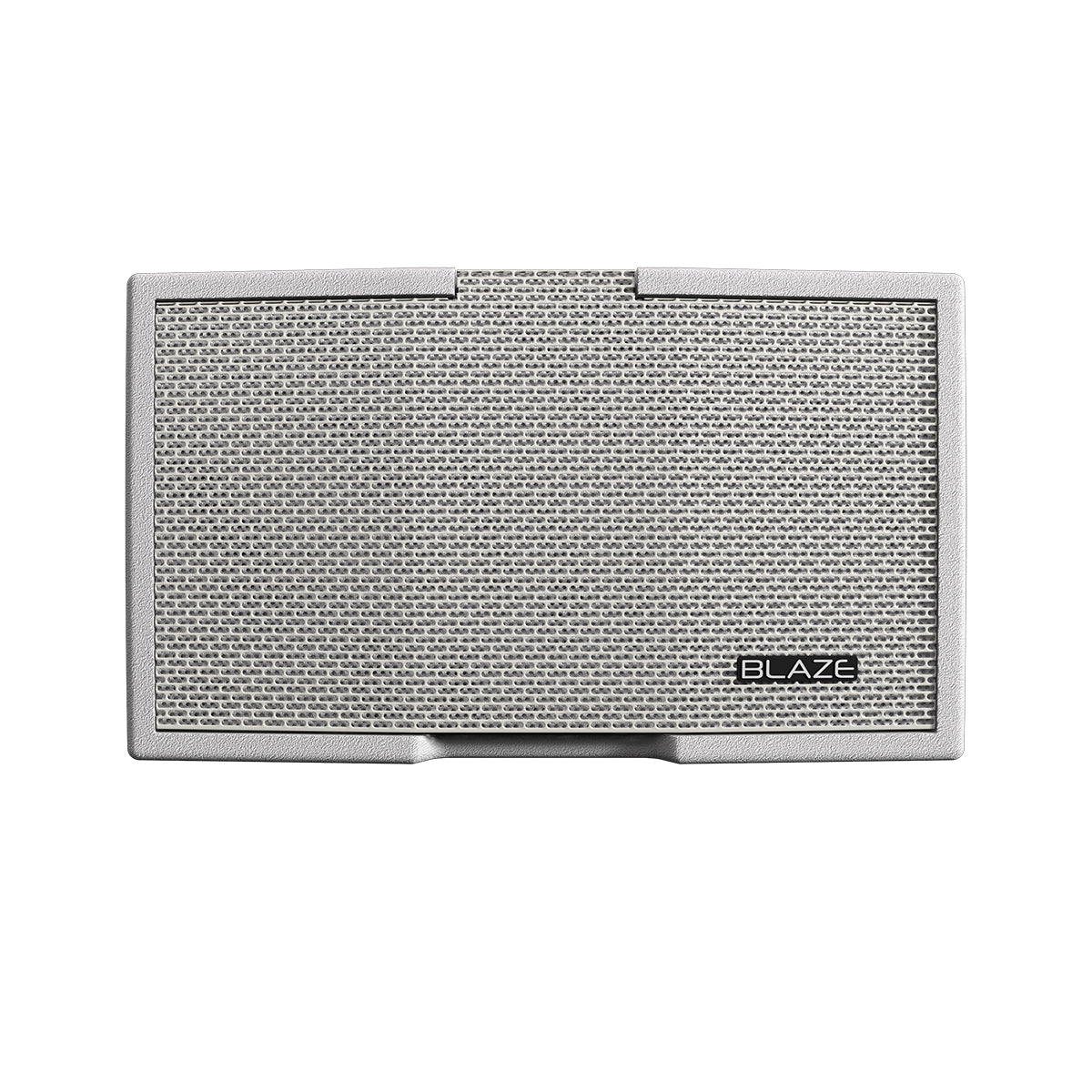

• Powder coated steel grille with a high transmission ratio.
• Tuned with a passive crossover and integration with Blaze Audio.

*(Average beamwidth, 500 Hz – 5 kHz)

Specifications

• Frequency Response (-3 dB)*: 71 Hz - 18 kHz
• Frequency Range (-10 dB): 55 Hz - 18 kHz
• Horizontal Nominal Dispersion (-6dB): 160°
• Vertical Nominal Dispersion (-6 dB) 55° *(Average beamwidth, 500 Hz – 5 kHz)
• Max SPL @ 1 W / 1 m: 119 dB
• Dimensions (HxWxD)
• 8.08” x 13.78” x 8.9”
• 205.32 x 350 x 226.21mm
• Weight
• 15 lbs
• 6.8 kg
