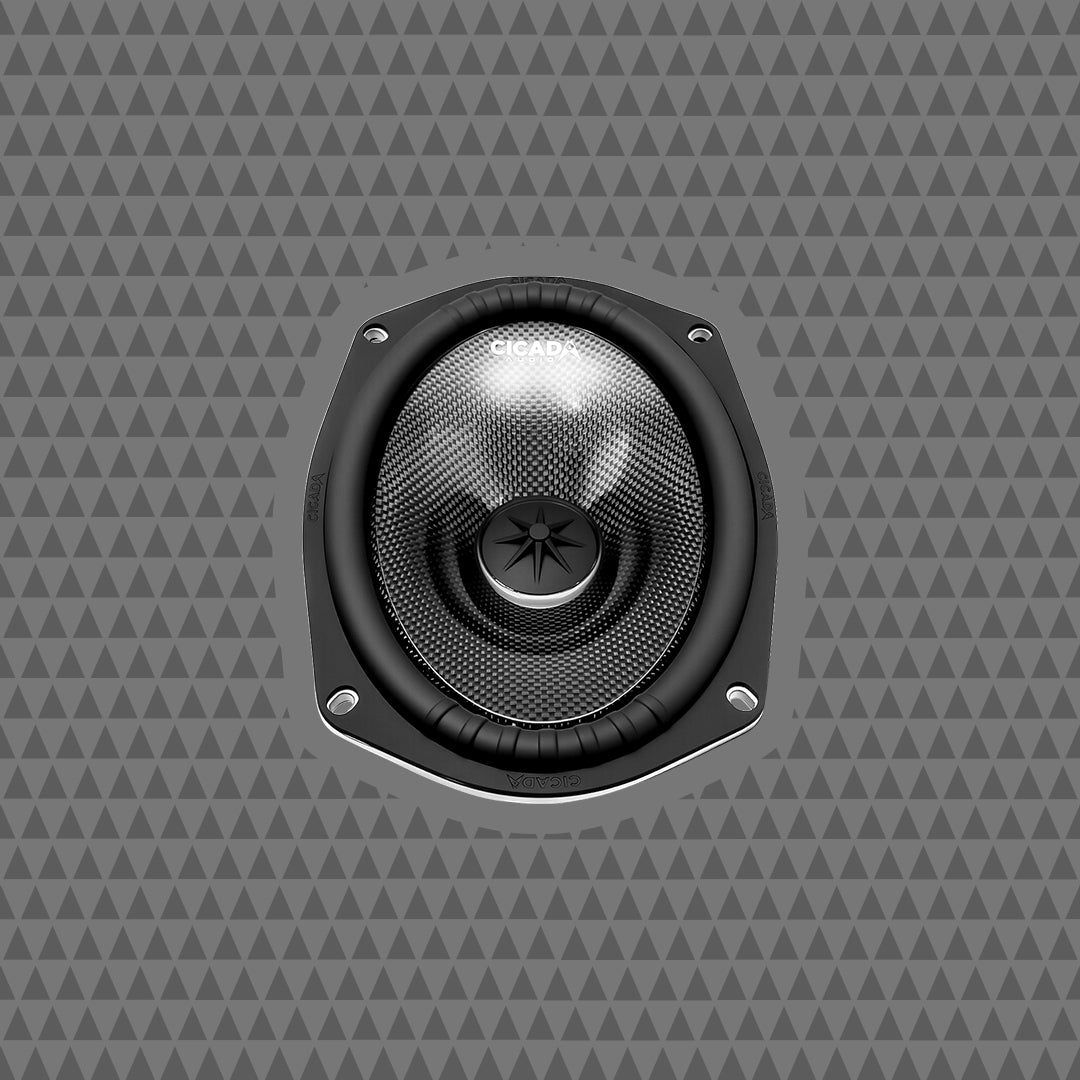

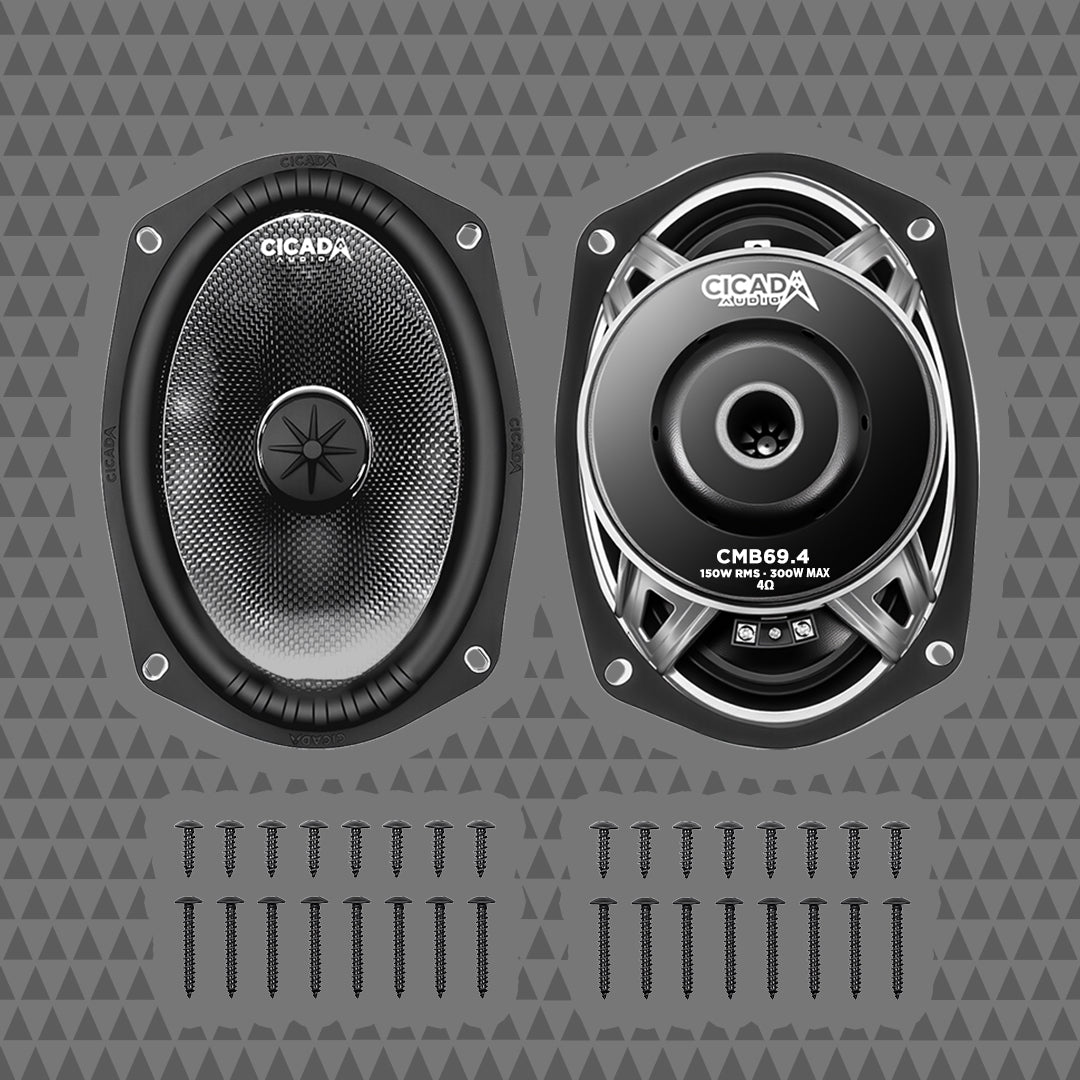

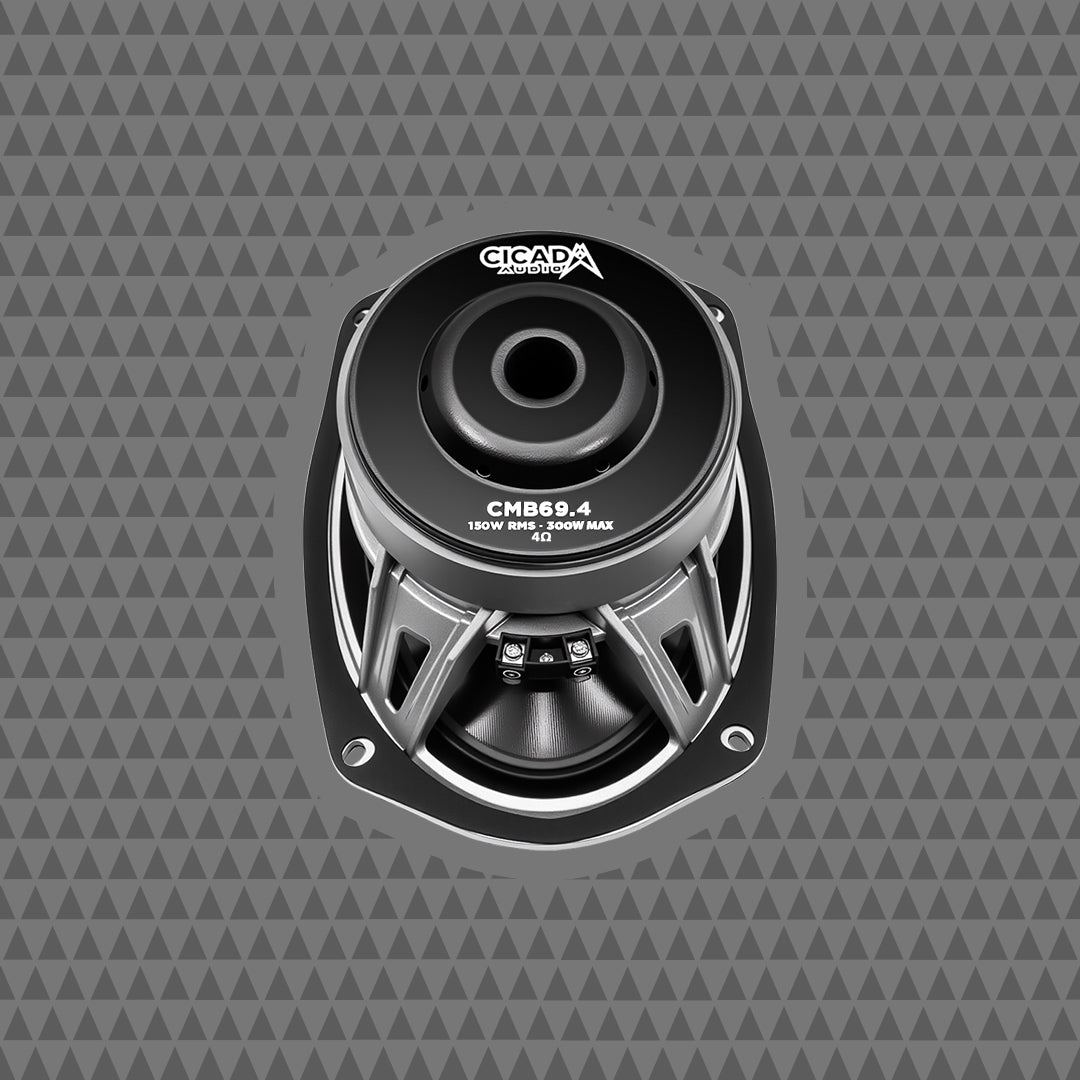

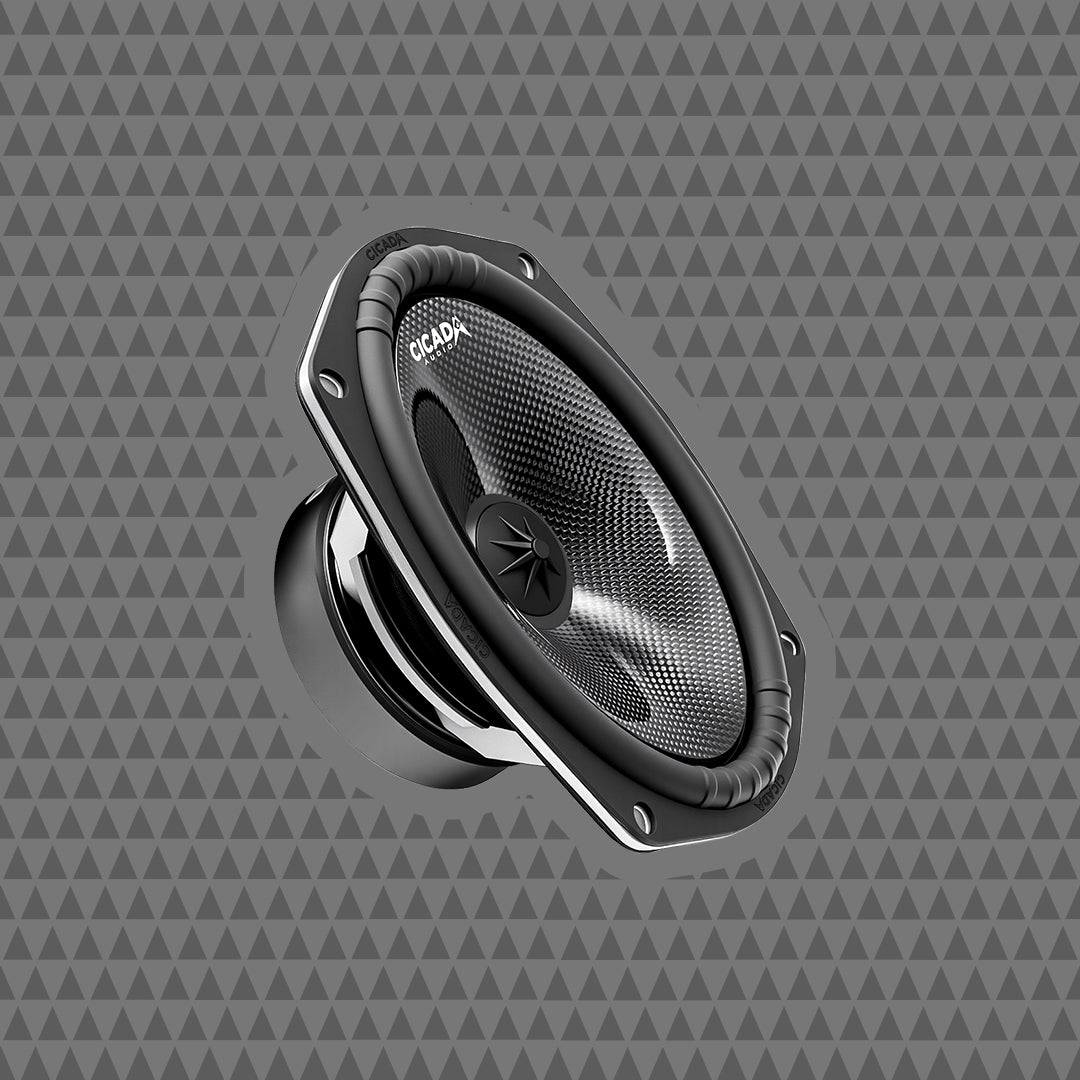

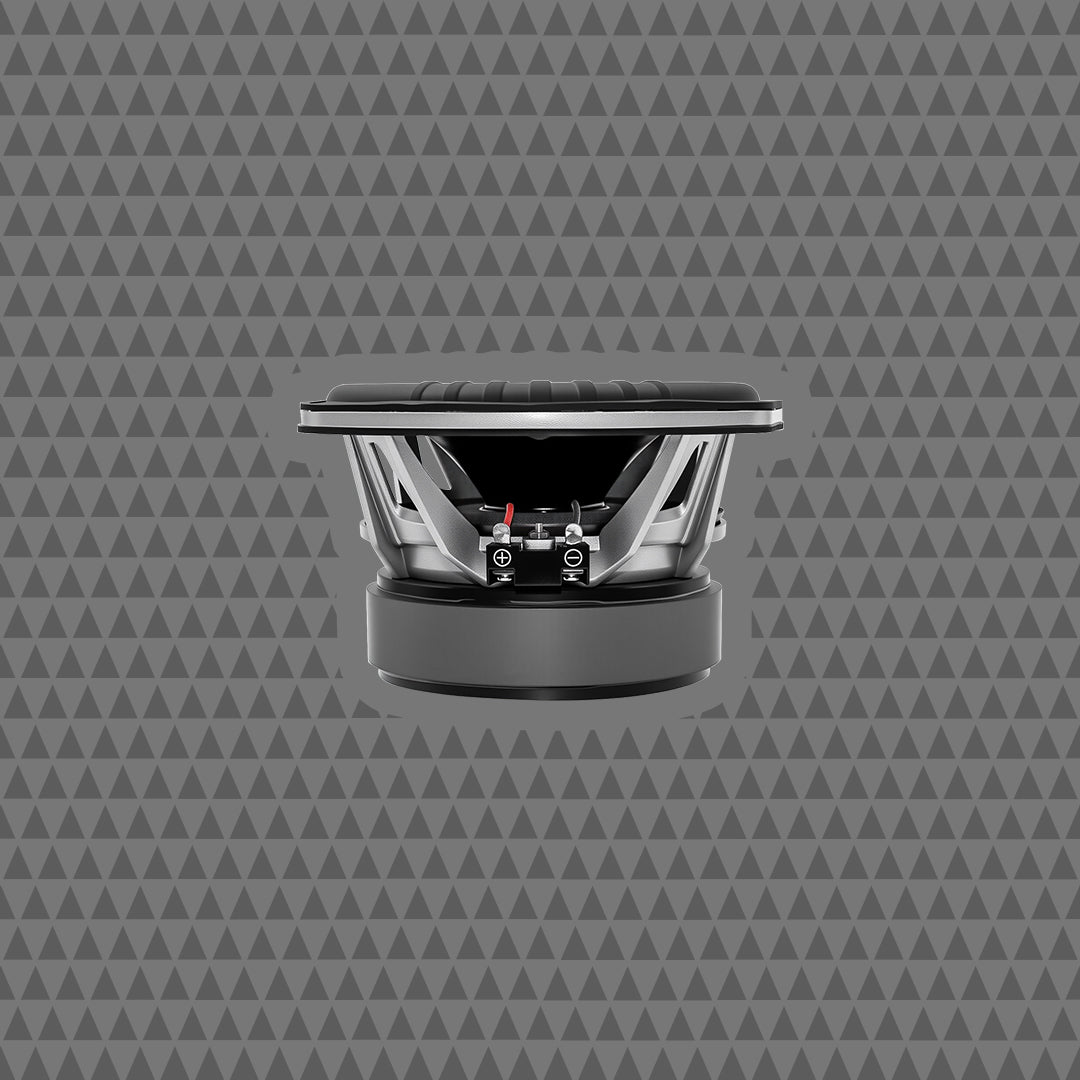

Cicada Audio Speaker CMB69.4

FEATURES

• Rain or Shine™ All-Weather Performance design
• Carbon Matrix Composite™ (CMC™) Cone – Lightweight, strong, high temperature resistant, and exceptionally efficient
• Black Coat™ OFC Copper Voice Coil – ensures high conductivity, low resistance, and extreme thermal performance
• 1.5-inch woofer voice coil – better sound, less heat
• Ribbed Santoprene® high roll surround
• Die-cast aluminum custom tooled basket with Vortex Flow Venting™ for superior heat dissipation and structural integrity
• Y35 Ceramic magnet – powerful motor structure
• Two (2) Year Warranty

SPECIFICATIONS

• Impedance: 4Ω
• Speaker Type: 6X9″ High-Performance Mid-Bass
• Power Handling: 150W RMS / 300W MAX
• Voice Coil: 1.5-inch / (38mm)
• Cone Material: Carbon Matrix Composite™ (CMC™)
• Surround: ribbed Santoprene high roll
• Magnet Type: Y35 Ceramic
• Sensitivity: 88 dB, 1W / 1M
• Frequency Response: 45 Hz – 1 kHz +/- 3 dB
• Mounting Depth: 3.9 inches (99 mm)
• Mounting Diameter: 5.7-inch (145mm) x 8.5-inch (216mm)

CICADA AUDIO® Industry awarded Motorcycle Audio Brand!

The new Cicada Audio CMB69.S2/4 Mid-Bass drivers are a powerhouse solution for Harley baggers and other motorcycles built for riders chasing serious mid-bass performance.

Designed & Built Specifically for Motorcycles

Cicada Audio® was founded with one mission:
Create and deliver audio products made exclusively for Harley‑Davidson® and motorcycle applications.

Even if the name is new to you, our founder, Larry Frederick, brought over 30 years of 12‑volt audio design experience, backed by:

• 5 engineering and design awards
• 2 design patents
• Thousands of products developed—many achieving near “cult” status

Larry knew 12‑volt audio inside and out. Before his passing, he recognized the need for fresh thinking in motorcycle audio, and that’s why Cicada Audio® exists.

Next‑Level Performance for Harley Builds

These Mid-Bass drivers represent the next evolution in Cicada Audio engineering:

• More power handling
• Higher output
• Lower, more authoritative mid-bass response
• Exceptional sensitivity for extreme volume
• Superior materials for maximum sound quality and longevity

With 1.5-inch, 6‑layer, 4‑ohm voice coils, a trick dust cap, and carbon‑fiber cones, these drivers are built to outperform every “pro audio” style speaker used in Harley applications today. They offer high heat dissipation, huge output, and no compromises.

These aren’t lightweight.
These aren’t gentle.
These are beyond anything in the current market.

All cone materials, surrounds, and finishes have passed extensive UV exposure testing to ensure long‑term performance and durability.

Applications & Custom Fitment

These drivers require total custom fabrication—they are not for basic installs.

• Rated: 150W RMS each
• Capable of: 300W RMS

Recommended Amplification Options

• Cicada Audio® FLX2000.4
  • Run bridged into a massive 2‑channel configuration
  • Provides 1,000+ watts RMS bridged per Mid-Bass driver

—OR—

• Cicada Audio FLX1600.1 Mono Block
  • Drive a pair of CMB69.4s in parallel at 2 ohms / 1600W

Both setups deliver true “ground‑shaking” performance for riders who want nothing short of extreme.

Power Requirements

If you go this route, expect to upgrade your electrical system.
You’ll need lithium support, such as the LIMITLESS NANO.

Rule of thumb:
Every 1,000W RMS requires ~116A of current.
Plan accordingly!

Important Note!

Sold in pairs.

Harley-Davidson® and Road Glide® are registered trademarks of Harley-Davidson Motor Company.

Not Sure What System You Want?

No worries—Cicada Audio has designed multiple system layouts covering nearly 90% of the builds most riders aim for. These examples help you figure out the direction you want to take, so you can map out the perfect custom setup.
After all, there are a million ways to “skin a cat,” as the saying goes!
