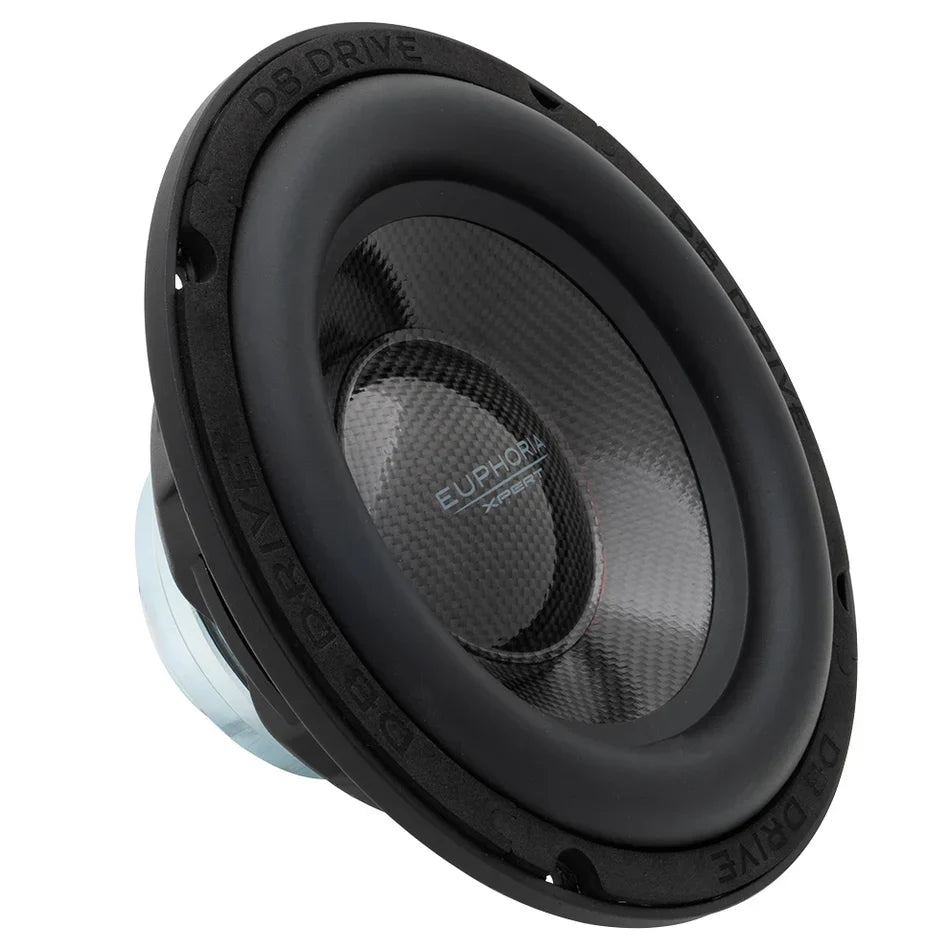

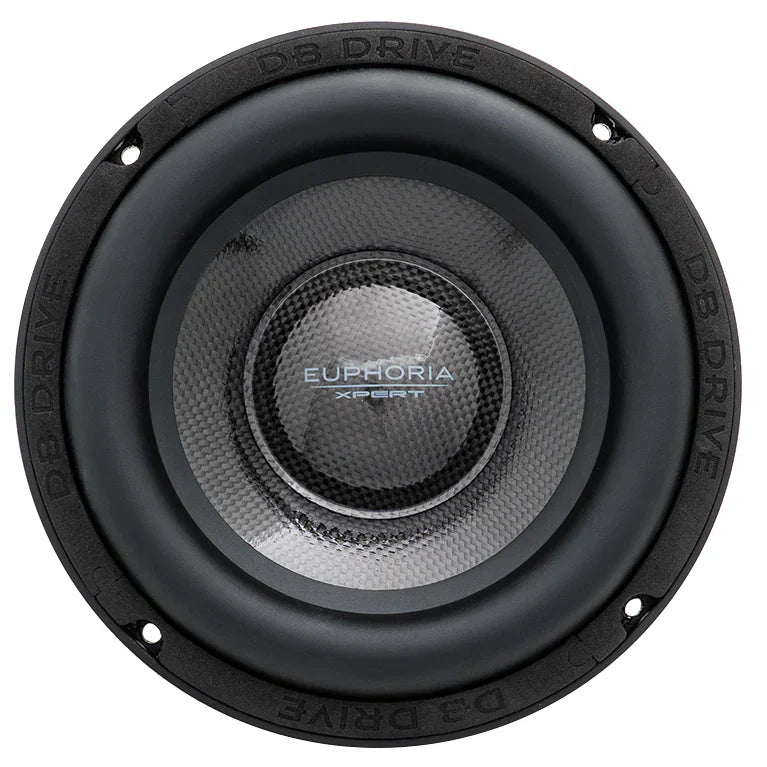

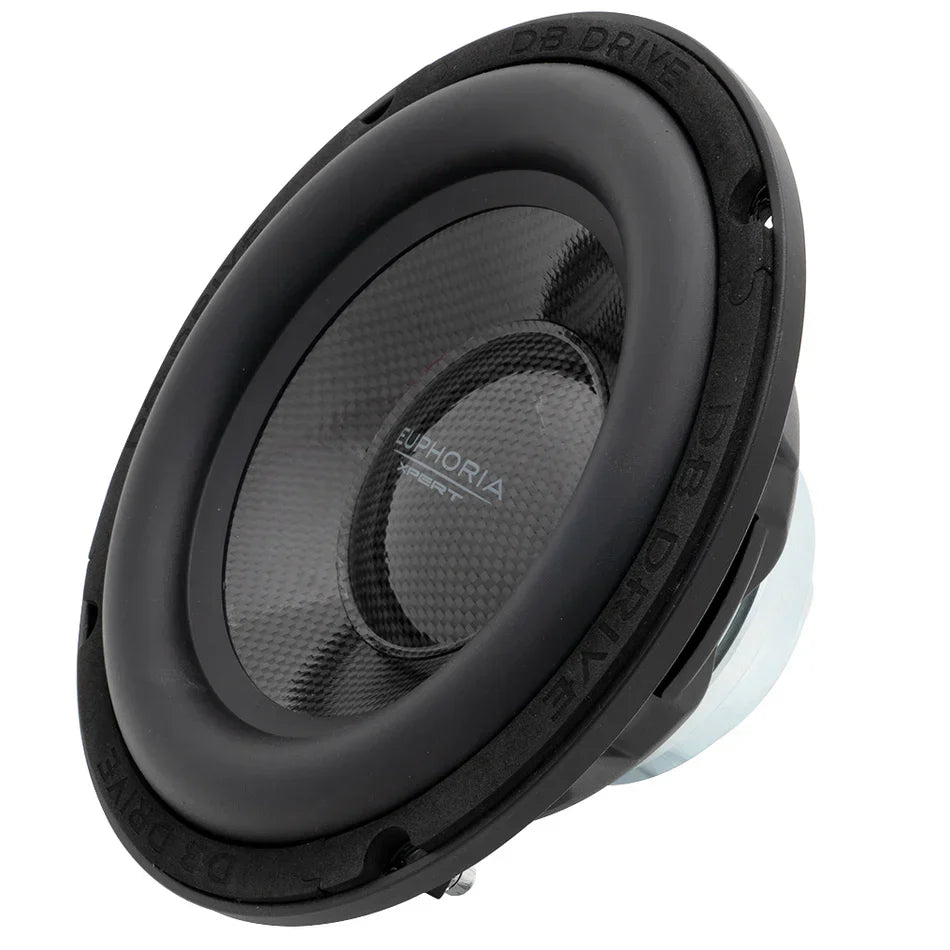

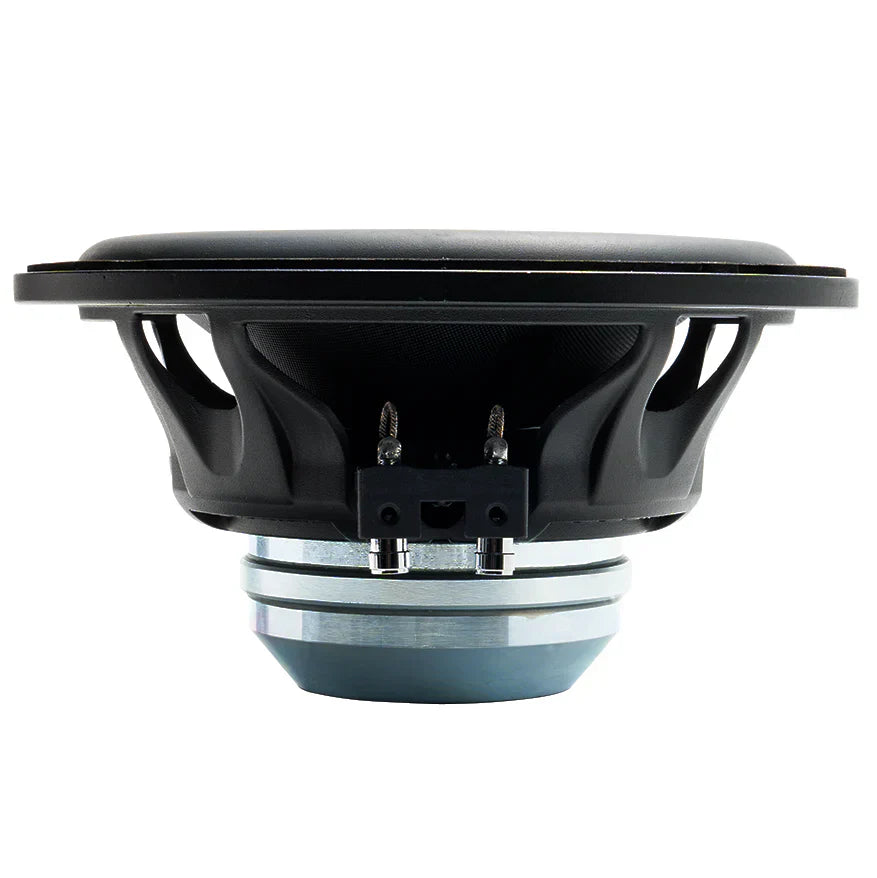

DB Drive Car Audio EX8NMB-CFV2
WOS Pick What you're getting in 10 seconds — expand for full details.
- BrandDB Drive
- SKUEX8NMB-CFV2
Mei says"Match gear to your install and power budget. Do it once, do it right."
The stuff you'll actually notice
- The XPERT EX8NMB-CFv2 carbon fiber midbass driver features a redesigned single-ring N52 neodymium magnet and a proprietary aluminum die-cast basket, reducing its mounting depth for tighter installations. Its carbon fiber construction enhances outdoor durability. The motor was ...
Product description
The XPERT EX8NMB-CFv2 carbon fiber midbass driver features a redesigned single-ring N52 neodymium magnet and a proprietary aluminum die-cast basket, reducing its mounting depth for tighter installations. Its carbon fiber construction enhances outdoor durability. The motor was designed to have an extended bandwidth that makes it easy to pair with higher-frequency drivers such as midranges and tweeters.
- 2″ (51 mm) Voice Coil
- Neodymium M-Ring Magnet Assembly
- Optimized for High Output SQ Sound Systems
- Weather Resistant Carbon Fiber Cone with Rubber Surround
- Custom Aluminum Basket with Radial Venting
- Power Handling: 300 Watts
- Dynamic Wattage: 600 Watts
- Resonant Frequency (fs): 57.62 Hz
- D.C. Voice Coil Resistance (Re): 3Ω
- Mechanical Quality Factor (Qms): 2.81
- Electrical Quality Factor (Qes): 0.68
- Total Quality Factor (Qts): 0.553
- Compliance Equivalent Volume (Vas): 8.60 L
- Mechanical Compliance (Cms): 157.69 mm/N
- Sensitivity (1w/1m): 93.2 dB
- Impedance: 3Ω
- DIMENSIONS
- Overall Diameter: 8.29"/ 210.50 mm
- Cutout Diameter: 7.09"/ 180 mm
- Mounting Depth: 3.78"/ 96 mm
