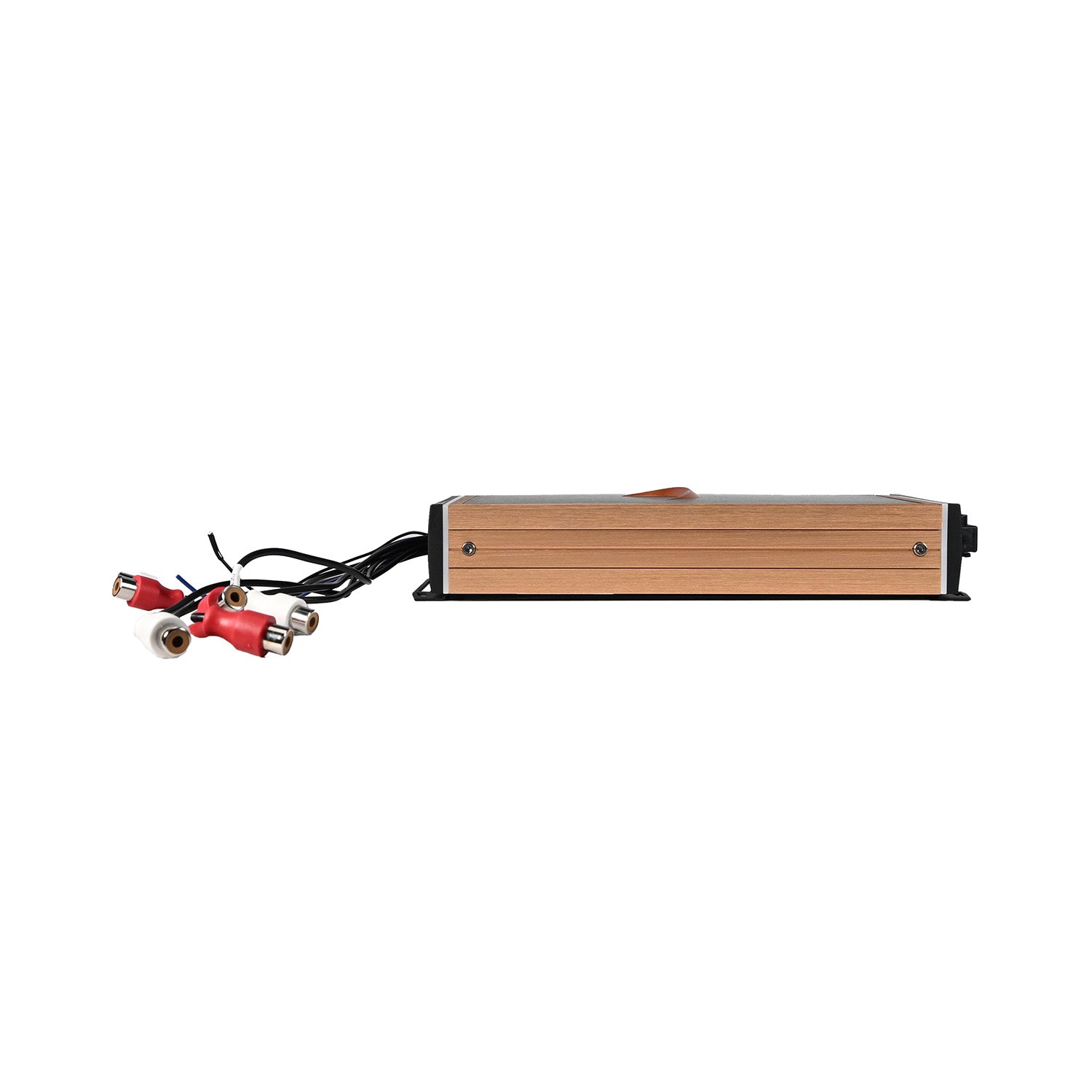

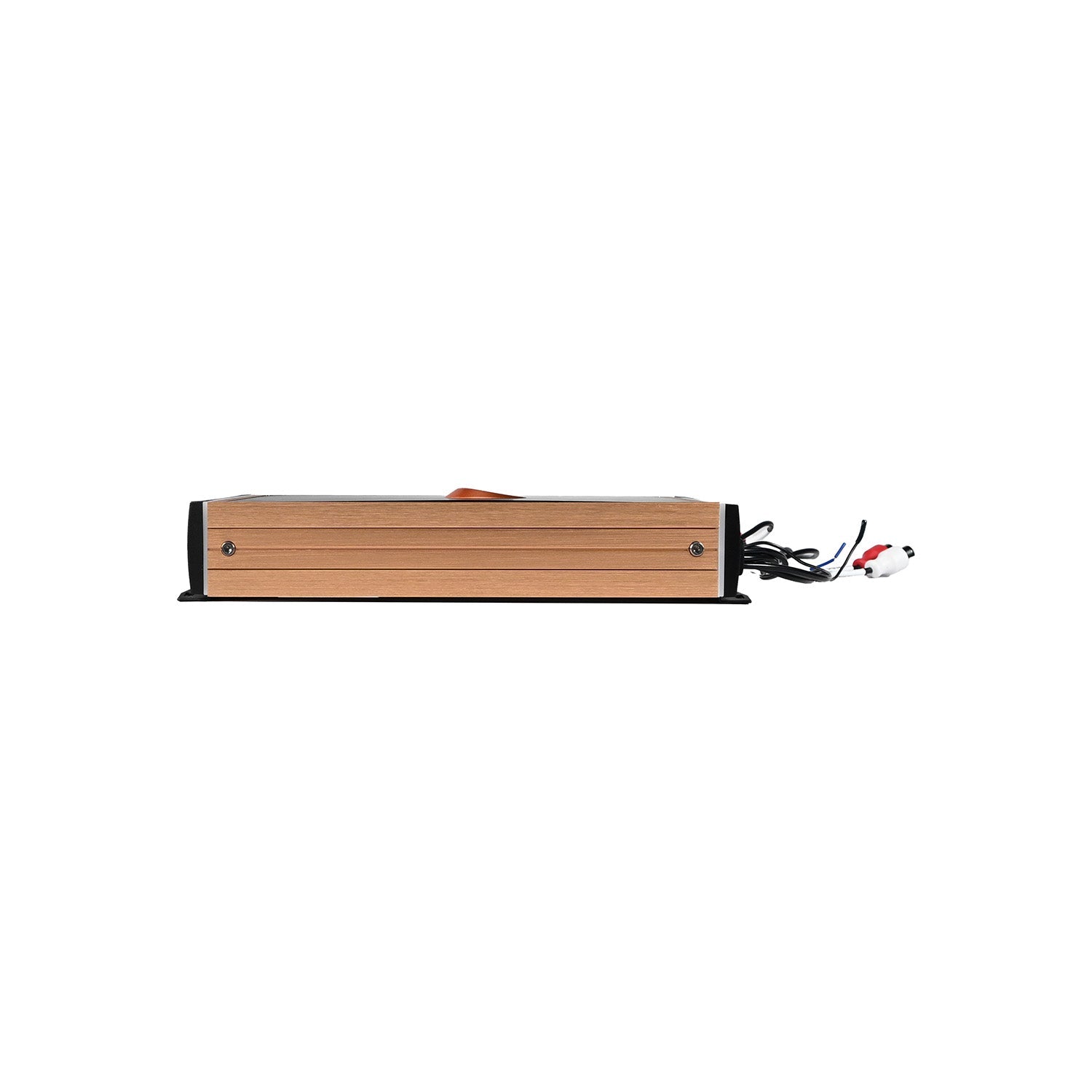

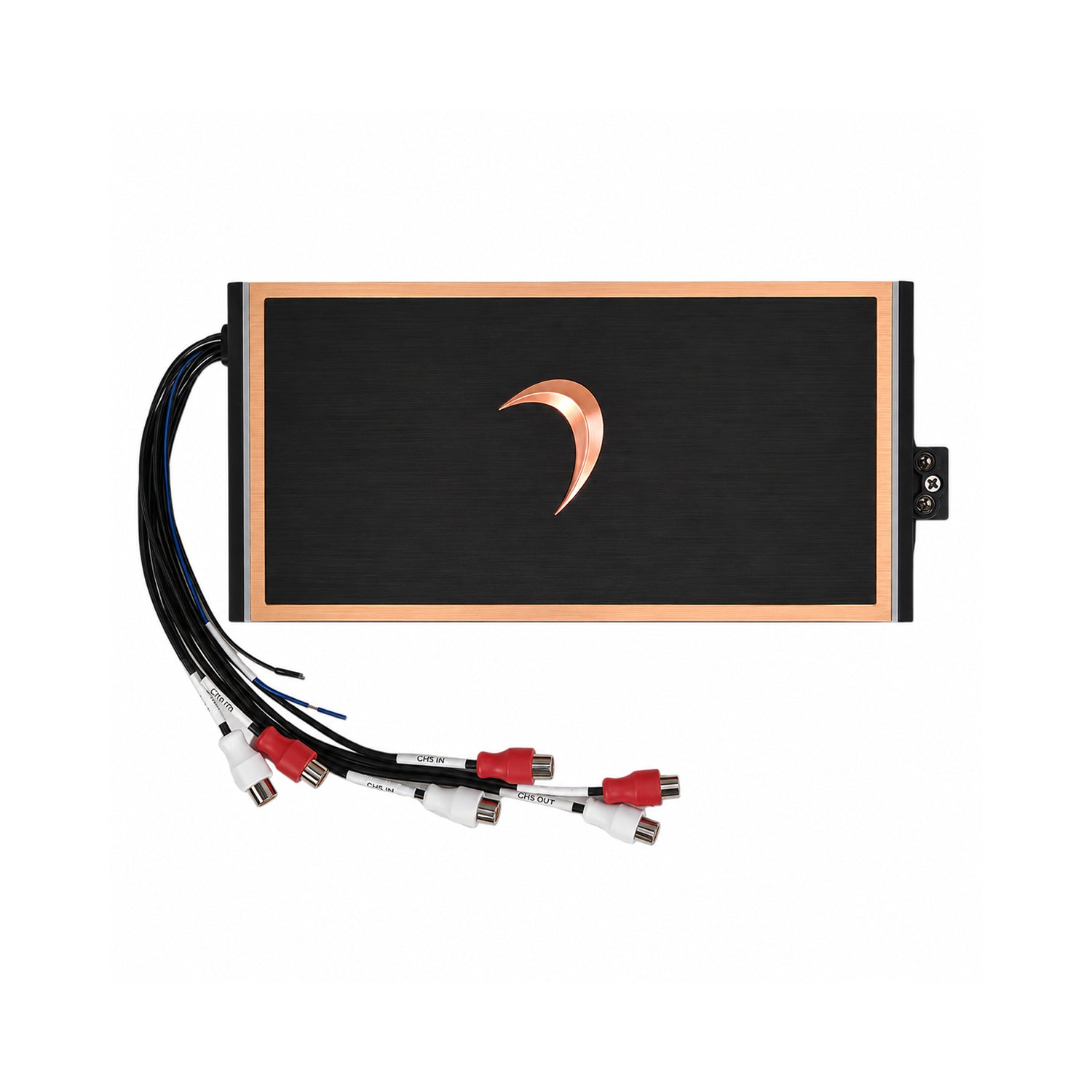

NEO12004DSP - 1200W RMS Class D 4-Channel Amplifier

Versatile Power Meets Precision Control

The Diamond Audio NEO12004DSP is the definitive solution for audiophiles seeking the perfect balance of multi-channel power and sophisticated tuning. As a high-efficiency Class D 4-Channel amplifier , it delivers a robust 1200W RMS total output , providing the versatile strength needed to drive high-end component speakers or subwoofers when bridged at 600W x 2 @ 4Ω , all while maintaining the pure sonic clarity Diamond Audio is known for.

Advanced Full DSP Integration

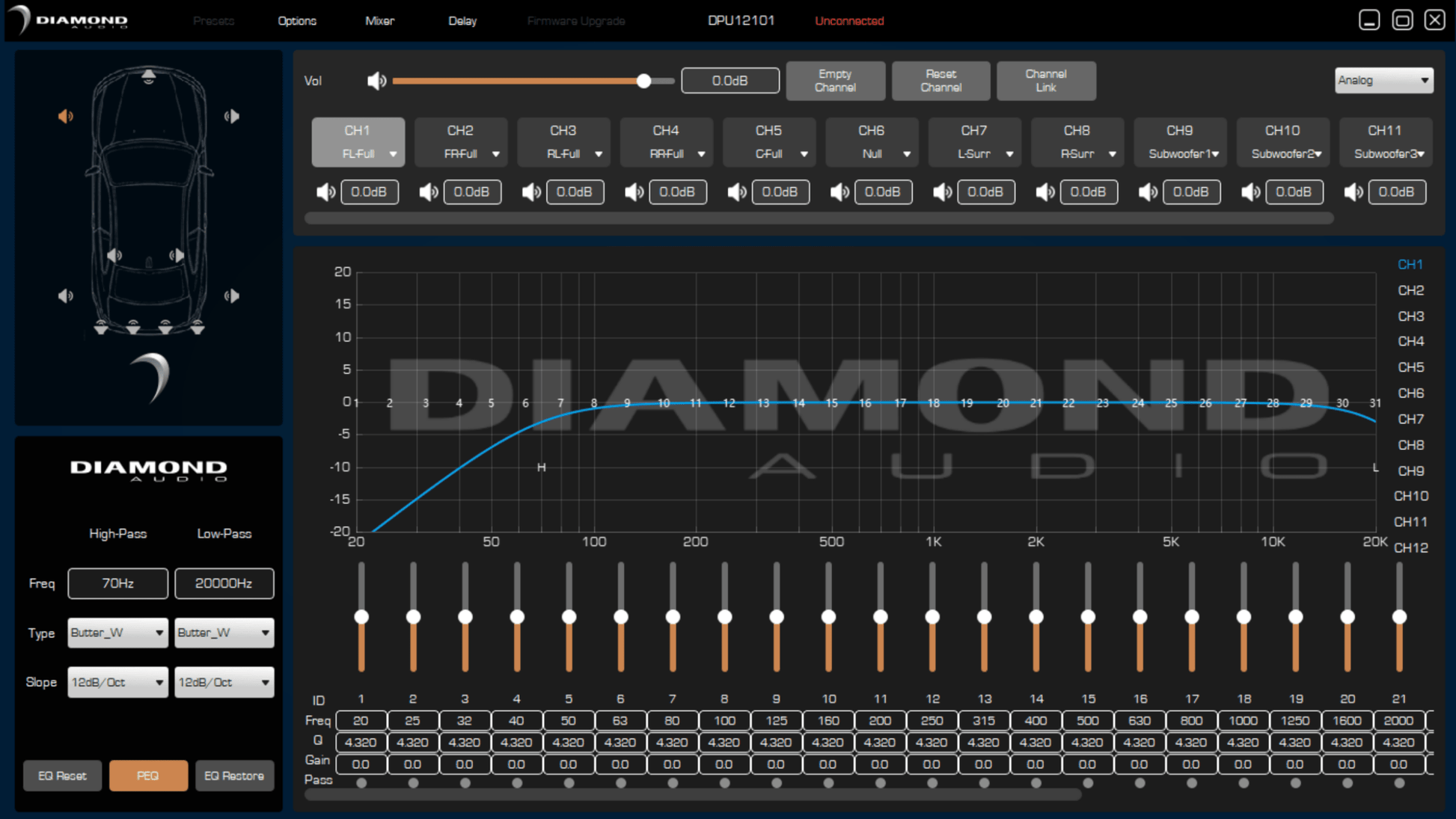

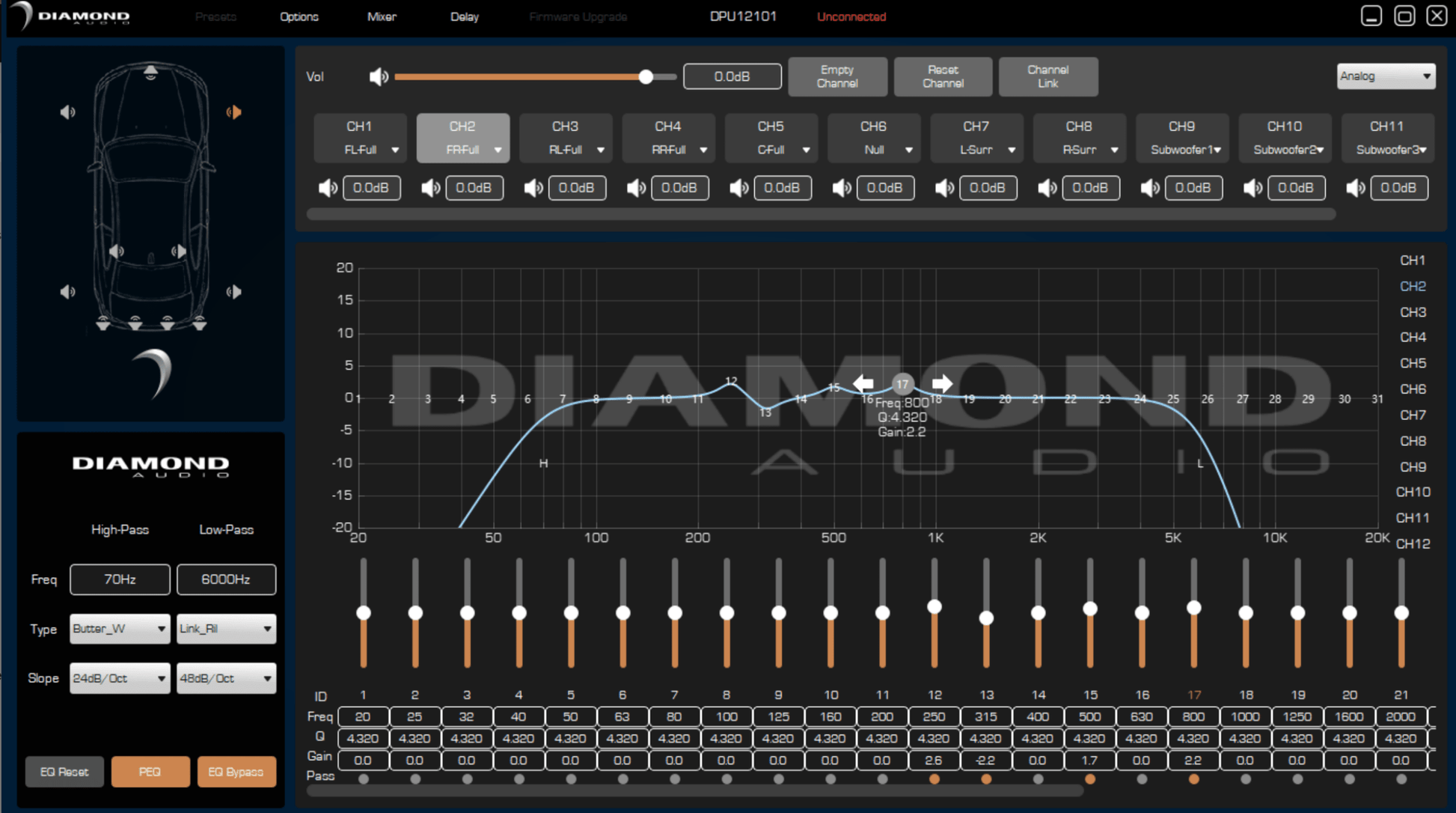

Unlike standard multi-channel amplifiers, the NEO12004DSP features an integrated, full-service Digital Signal Processor . With 31 bands of parametric EQ per channel , precise crossovers, time delay , and channel linking, you have total command over your entire soundstage. Whether you are tuning via PC or Android , the NEO Series provides a professional-grade interface to calibrate your system for any acoustic environment.

Seamless OEM & EV Integration

Designed for the modern vehicle landscape, the NEO12004DSP excels in integration. It features high-voltage signal inputs (up to 20V) and selectable on-board load resistors (10Ω - 20kΩ) to interface perfectly with complex factory (OEM) systems . Furthermore, its EV-friendly voltage compatibility (8-17V) ensures stable performance in electric and hybrid vehicles without compromising the vehicle’s electrical integrity.

Versatile & Rugged Engineering

Built to perform in diverse environments, the NEO12004DSP features a marine-ready , water-resistant chassis , making it an ideal choice for high-end car audio, marine, and powersports installations . The compact footprint , staggered RCA connections, and high-current quick-connect power blocks ensure a clean, professional installation even in tight spaces, offering a powerful four-channel solution that is as durable as it is precise.

Key Features:

• Full DSP integration: 31 band parametric EQS per channel, crossovers, time delay, channel linking, PC or Android programming for advanced tuning and much more
• Easy OEM integration features:
  • Up to 20V signal inputs (High/Low level 20V – 0.4V)
  • Selectable on-board load resistors (10Ω, 20Ω, 60Ω, 20kΩ)
  • EV friendly voltage compatibility (8V – 17V)
• Marine ready, water-resistant chassis

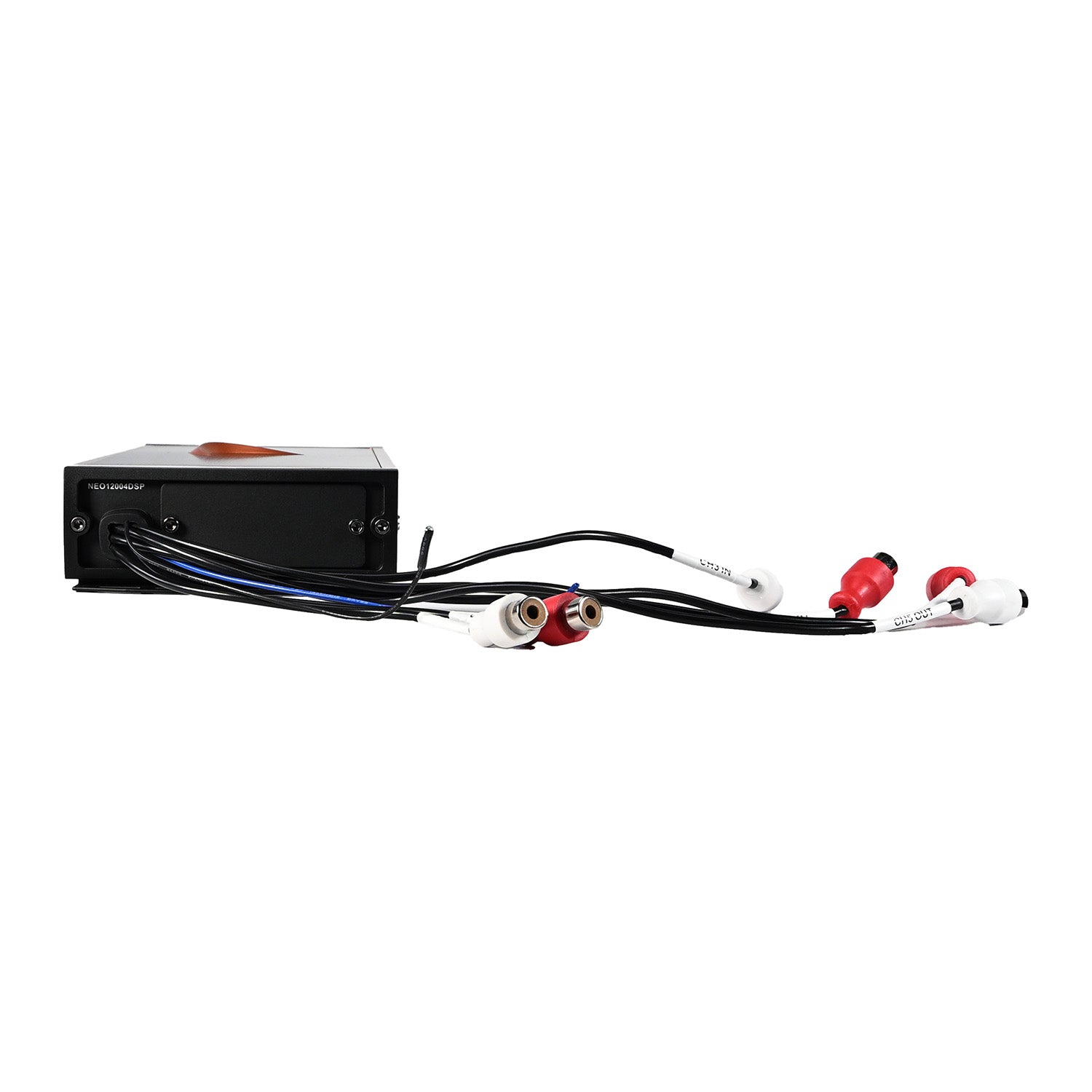

• Staggered RCA connections for clean installations

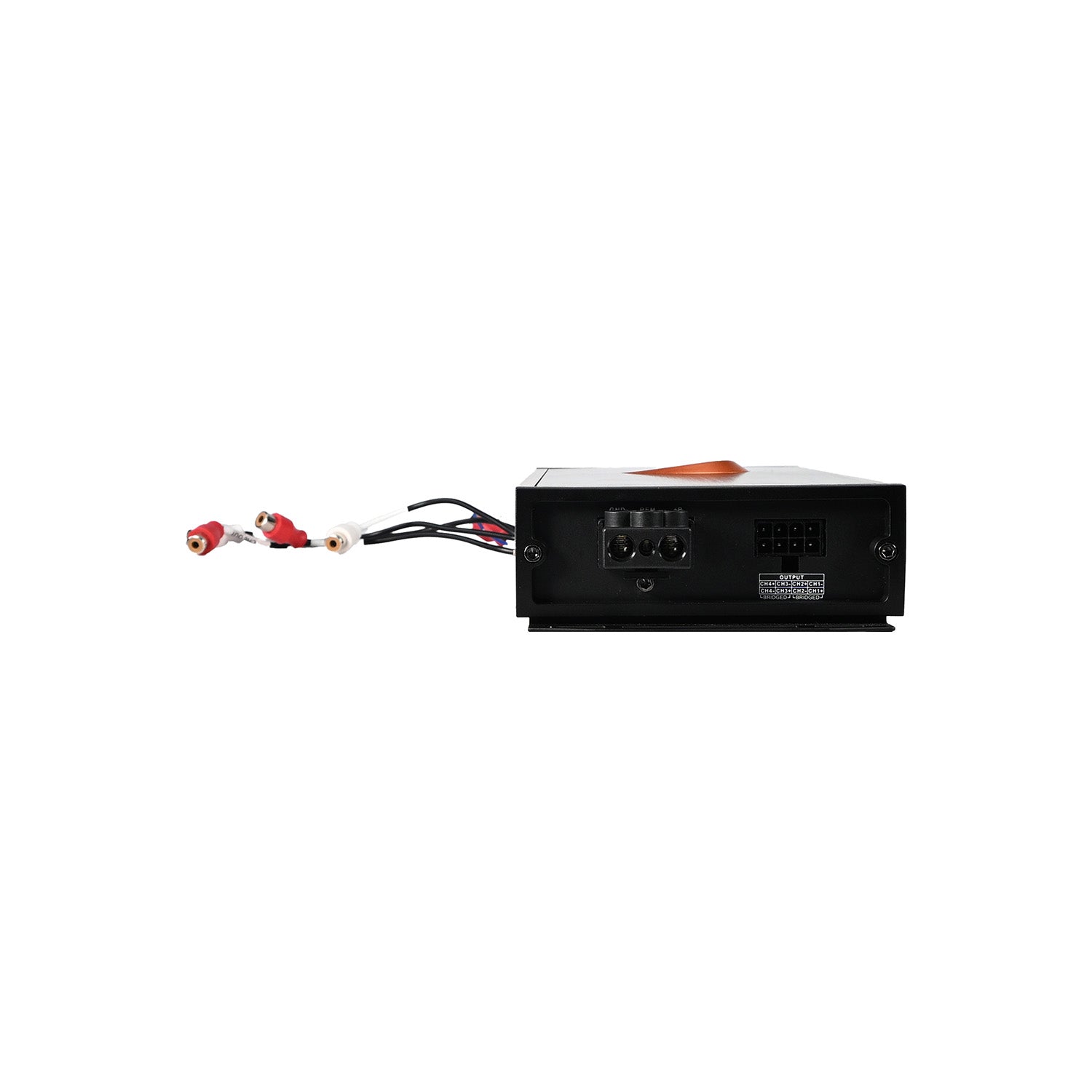

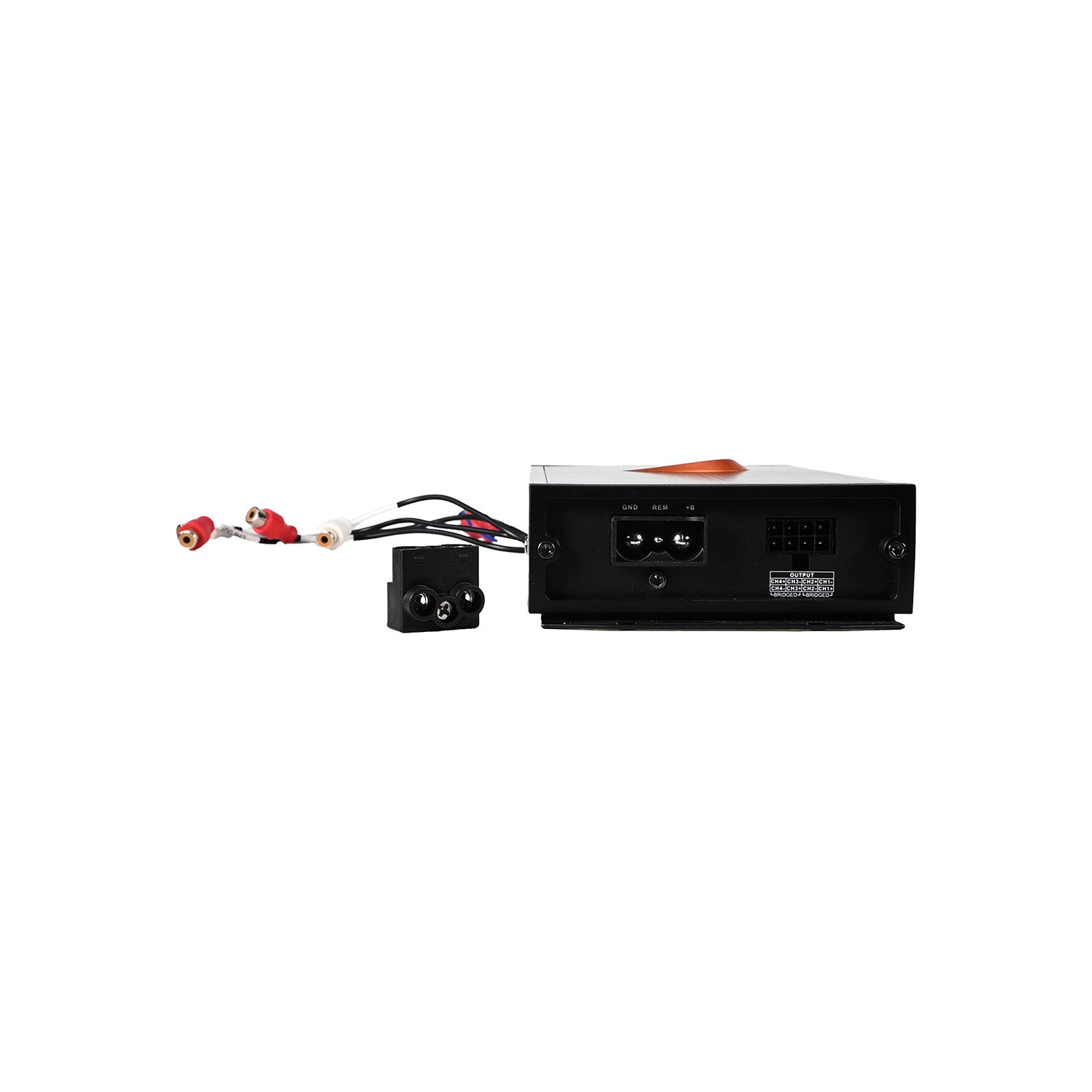

• High-current quick-connect power block
• NeoDRC1 Diamond Remote Commander compatible (sold separately)
• 2 RCA preamp outputs for system expansion
• Ultra-low distortion (0.05% THD)

PC SOFTWARE DOWNLOAD

TECH NOTE: POWER UP AMPLIFIER FOR PROGRAMMING- SELECT DC POSITION FOR AUTO TURN-ON
