DS18

DS18 UTV Audio Pod DS-JP6

DS18 UTV Audio Pod DS-JP6

$239.95 USD
$239.95 USD
Sale Sold out
WEATHER READY
  • Cone MaterialPaper
✔ In Stock & Ready To Ship
View full details
Mei from Wide Open Sound

Wide Open Sound · Curated gear

DS18 UTV Audio Pod DS-JP6

WOS Pick What these speakers do in 10 seconds — expand for full specs.

  • BrandDS18
  • SKUDS-JP6
  • TypePod
  • RMS150
  • Ohms4 ohm
Mei says

"Speakers are where the sound actually happens. Right size + power match = instant upgrade."

The stuff you'll actually notice
  • Type: Pod.
  • RMS: 150.
Product description

Durable ABS Housing using factory mounting locations
Ready for OEM factory speaker connector and grommet
Compatible with the factory amplifier

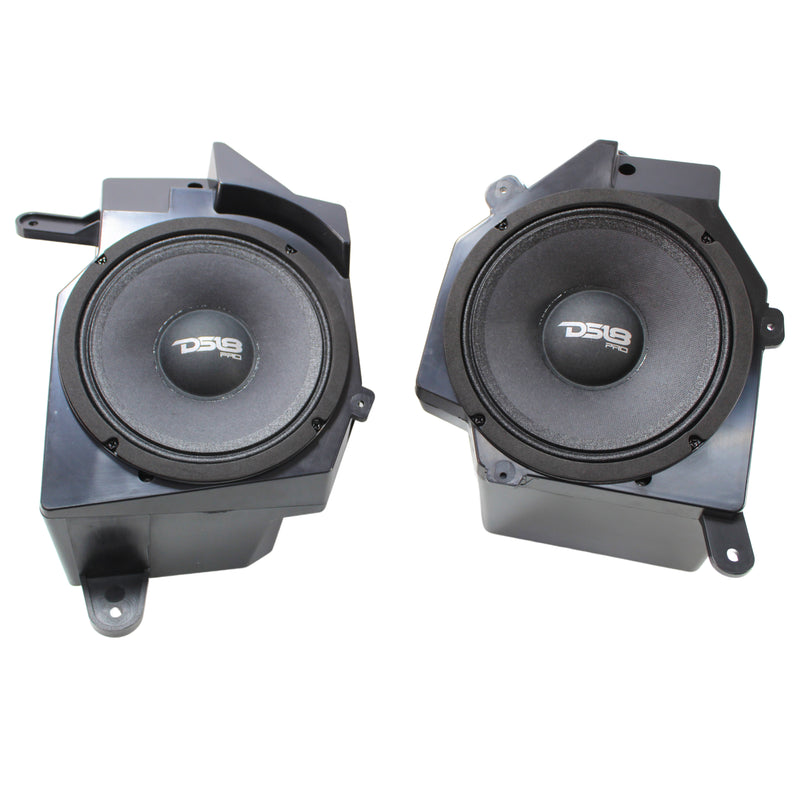

DS18 Jeep 6.5" 300W 4 Ohm Mid-Range Dash Enclosure Upgrade JL, JLU and JT JP6

This Listing Includes:

(1) Dash Enclosure Upgrade with two 6.5" Neodymium Speakers

The new DS18 JP6 enclosure is specifically designed for Jeeps and comes with two 6.5" Neodymium Speakers which can handle a hefty 300 Watts! Fits JL, JLU and JT Jeeps. Uses factory mounting locations for quick install.

Specifications:

Size: 6.5"

Ohms: 4 Ohms

RMS Power: 150 Watts

MAX Power: 300 Watts

Sensitivity: 96dB

Frequency Response: 100Hz-10KHz

Recommended Hi Pass Crossover: 120Hz

Voice Coil Diameter: 1.5"

Cone Material: Paper

Dust Cap Material: Paper

Surround Material: Cloth

Basket Material: Steel

Magnet Material: Neodymium

Magnet Weight: 3oz.

Thiele & Small Parameters Specifications:

Equivilant Vol :Vas 4.463L

Excursion (one way): Xmax 1.5 mm

Free Air Resonance: Fs 138 Hz

Mechanical Factor: Qms 4.249

Electrical Factor: Qes 0.977

Total Factor: Qts 0.794

Moving Mass: Mms 7.166g

Compliance: Cms 148.927 u/M/N

Bl Factor: BL 4.767

VC Inductance: Le .08696mH

Diaphragm Area: Sd 145cm2

Dc Resistance: Re 3.2 ohms

Mechanical Mass: Mmd 6.159g

Speaker specs
Speaker Type Pod
Impedance 4 ohm
Sensitivity 96
RMS Power 150
Peak Power 150
Build & install
Cone Material Paper
