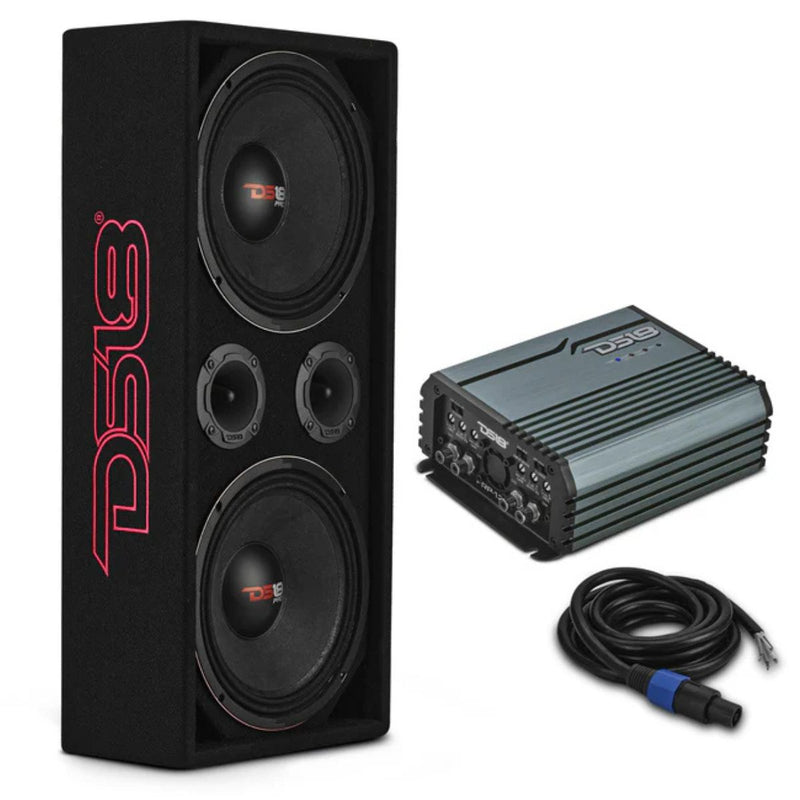

DS18 UTV Audio Pod DS-VOC10LD-PK

Dual 10 inch PRO X10M midrange speakers and dual 3.78 inch PRO TWX2 tweeters deliver loud, clear street vocals
Includes the FRP 1.2K4 full range amplifier for a complete plug and play voceteo setup
Side ported 15mm MDF enclosure wrapped in black carpet for strong projection and durability
Comes with a 12 foot OFC 4 conductor Speakon cable for fast, clean connection to the amp
Wide 80Hz to 20kHz response and a 4 ohm parallel load for powerful, efficient performance

Dual 10 inch 300W RMS Voceteo Loaded Enclosure w Tweeters, Amplifier & Speakon

This Listing Includes:

(1) Loaded Voceteo Enclosure with Dual 10 inch Midrange Speakers

(2) 3.78 inch PRO TWX2 Bullet Tweeters

(1) FRP 1.2K4 Full Range Amplifier

(1) 12 ft OFC 4 conductor Speakon Cable

The VOC10LD PK brings serious street power in a ready to play voceteo setup. It comes fully loaded with two 10 inch PRO X10M midrange speakers, two PRO TWX2 bullet tweeters, the FRP 1.2K4 amplifier, and a clean 12 foot Speakon cable for fast connection. The enclosure is side ported and made from half inch MDF with a black carpet finish, giving you the strong vocal projection and durability voceteo boxes are known for. With 600 watts of midrange muscle, 240 watts of tweeter power, and a 4 ohm parallel load, this setup hits hard with sharp clarity and high output. The amp gives you full tuning control with HPF, LPF, or full range modes, plus bass boost and wide filter adjustment so you can dial it in your way. If you want loud, effortless, plug and play performance, the VOC10LD PK is the system that brings the show to the street.

Specifications:

Speaker Configuration: Dual 10 inch Midrange (PRO X10M) + Dual 3.78 inch Tweeters (PRO TWX2)

Total Impedance: 4 Ohm

Total RMS Power: 300W

Total MAX Power: 600W

Sensitivity: 98 dB

Frequency Response: 80Hz to 20kHz

Recommended High Pass: 120Hz

Enclosure Type: Side Ported

Material: 15mm MDF

Internal Volume: 18.83L / 0.665 ft3

Port Tune: 120Hz

Finish: Black Carpet

Load Configuration: Parallel

F3: 120Hz

Amplifier FRP 1.2K4 RMS Power:

4 Ohm: 4 x 120W

2 Ohm: 4 x 200W

1 Ohm: 4 x 300W

Bridged 4 Ohm: 2 x 350W

Bridged 2 Ohm: 2 x 500W

Amplifier Audio Specs:

Frequency Response: 10Hz to 20kHz

Signal to Noise Ratio: 90 dB

Efficiency: 97 percent at 4 Ohm

Input Impedance: 10k

THD: 0.5 percent

Low Level Input: 400mV to 6V

Selectable X Over: HPF, FULL, LPF

Filter Range: 10Hz to 2kHz

Bass Boost Frequency: 50Hz

Bass Boost Range: 0 to 12 dB

Channel Separation: 50 dB

Speakon Cable:

Length: 12 ft

Material: OFC Copper

Conductors: 4

Gauge: 14 AWG

Outer Diameter: 8 mm

Construction: Stranded Multi Twist

Shield: PVC Black

Dimensions:

Height: 26 in

Width: 11.75 in

Depth: 6.25 in
