DS18 UTV Audio Pod DS-VOC10PRO

Ported voceteo enclosure designed to fit dual 10 inch mids, dual 4 inch tweeters, and a 2 inch driver for maximum vocal projection.
Built from half inch MDF with black carpet for a strong, clean, and durable finish suited for mobile and stage audio setups.
Tuned 1.45 cubic foot chamber boosts midrange clarity and delivers loud, sharp output ideal for voceteo and SPL style systems.
Pre wired with mids in parallel and tweeter driver section in series parallel for consistent performance and easy installation.
Includes a built in Speakon terminal and a 12 foot OFC cable for fast, secure, and reliable amplifier connection.

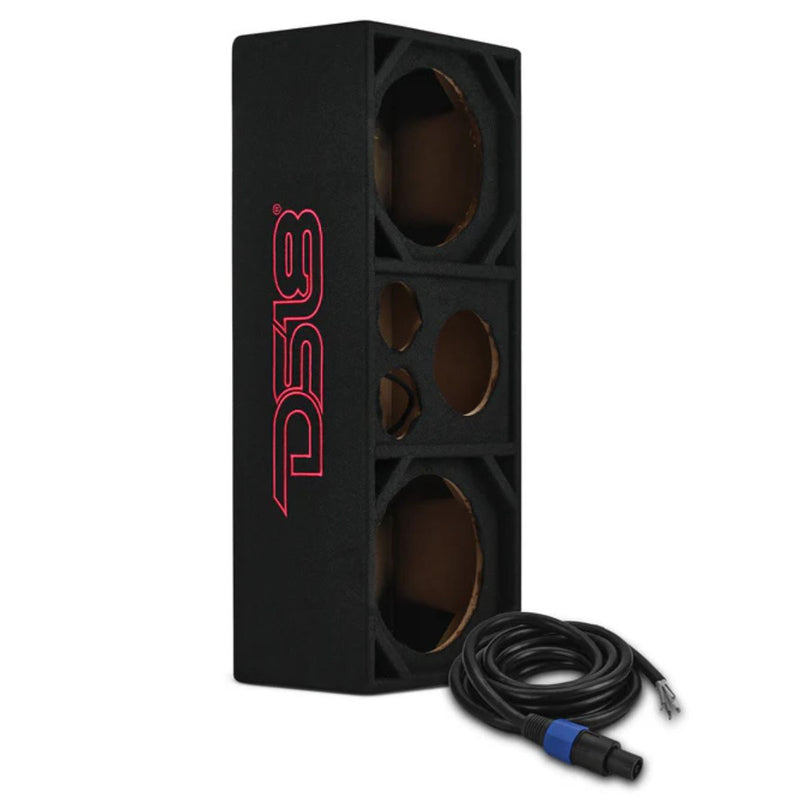

Dual 10" + Dual 4" Tweeter + 2" Driver Ported Voceteo Enclosure Speakon Ready

This Listing Includes:

(1) Dual 10" + Dual 4" Tweeter + 2" Driver Ported Voceteo Empty Enclosure

(1) Built-in Speakon Terminal

(1) 12ft OFC 4 Conductor Speakon Cable

This ported voceteo enclosure is built for serious output. It fits two 10 inch mids, two 4 inch tweeters, and a 2 inch driver, giving your highs and vocals the power to cut through crowds, wind, or open-air setups. The VOC10PRO uses a tuned 1.45 cubic foot internal chamber that boosts midrange clarity and projection. Wiring is already configured for performance, with the mids in parallel and the tweeters and driver in a series parallel setup. Made from half inch MDF and wrapped in black carpet, it’s durable, clean looking, and easy to integrate into mobile walls, stage systems, or competitive street builds. With the Speakon terminal and 12 foot OFC cable included, installation is fast and secure.

Specifications:

Fits: 2 x 10 in midrange speakers

Mounting depth: 5.25 in

Speaker cutout: 9.25 in

Fits: 2 x 4 in tweeters

Mounting depth: 6.25 in

Tweeter cutout: 3.6 in

Fits: 1 x 2 in driver

Mounting depth: 6.25 in

Driver cutout: 5.7 in

Internal volume: 41.05 L / 1.45 ft

Load configuration: WF parallel, TW DR series parallel

Enclosure type: ported

Material: 1/2 in MDF

Finish: black carpet

Speaker Wires

Connector: Speakon male

Length: 12 ft / 3.6 m

Material: OFC copper

Conductors: 4

Gauge: 14 AWG

Outer diameter: 8 mm

Construction: stranded multi twist

Jacket: PVC black

Dimensions

Height: 33 in

Width: 12.7 in

Depth: 8.9 in

This enclosure is built for high output vocals and highs. Always confirm speaker fitment and wiring configuration before installation.
