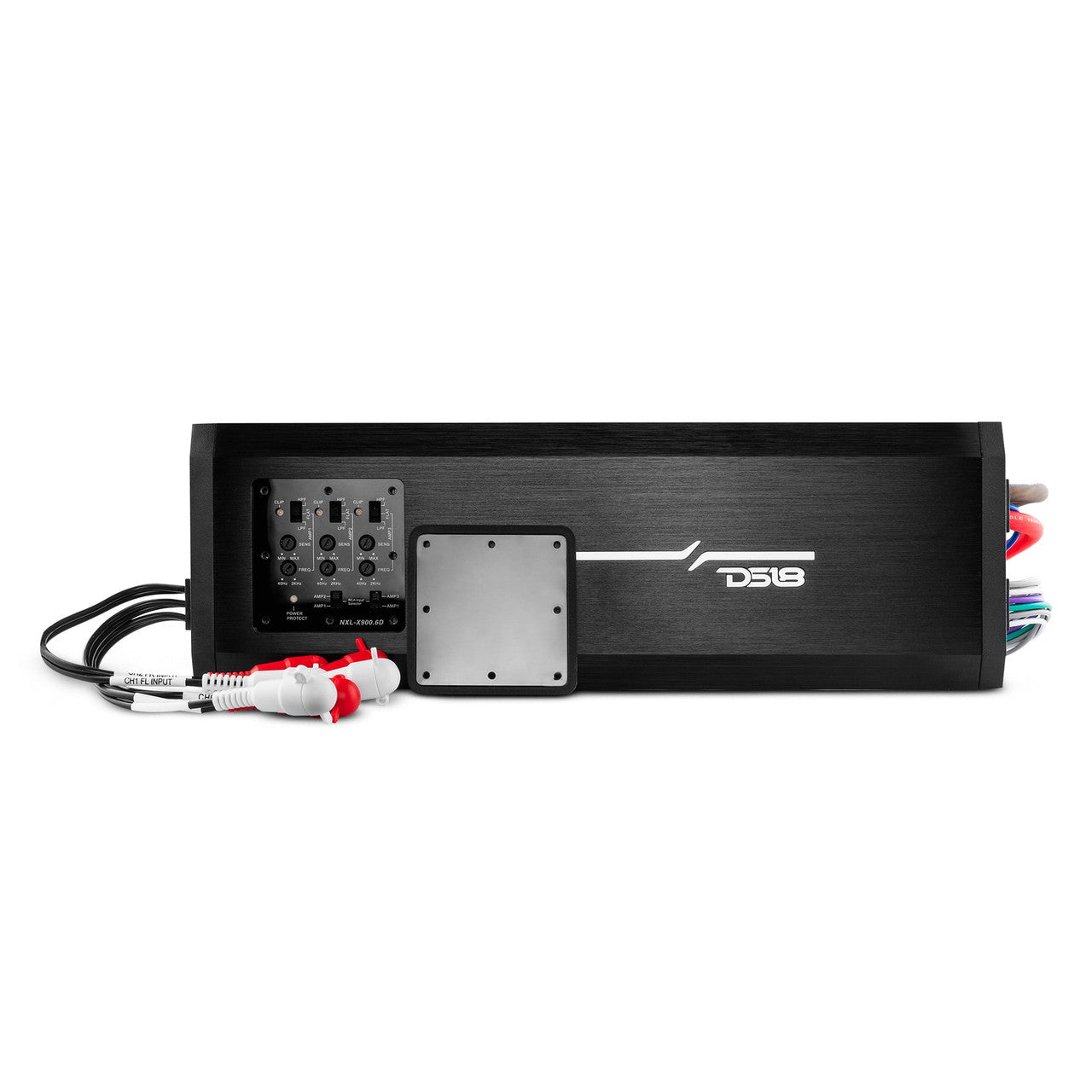

DS18 Marine amplifier NXL-X9006D

Product Description
DS18 HYDRO Marine Amplifier 3000w Full Range 6 ch Class D 4 ohms NXL-X900.6D

DS18 designed the NXL-X900.6D for customers looking for a compact and waterproof amplifier with exceptional power output and prioritizes boosting sound.

The NXL series impressive power output is supplemented by its outstanding efficiency, and its durability in harsh conditions makes it a favorite among customers in need of a waterproof amplifier to be the powerhouse of their system.

The NXL-X900.6D comes in a 6-channel configuration making it great for powering more complicated active setups.

The high pass and low pass filters will help you tune your speaker choice accurately so you can obtain crystal clarity from low volume levels all the way to maximum for the ultimate audio experience.

All NXL units have stable and reliable 4-layer PCB layouts, IP67waterproof rating for power sports, has an ultra-compact size for easy installation, and has audio precision quality control verification.

The NXL Marine Amplifier series is perfect for outdoor enthusiasts looking for a durable, waterproof amplifier with intense power for their marine vehicle's audio system. This series is best used in various rugged and wet environments, such as on trails or at the lake.

Features:

- The included a marine grade fuse and fuse holder that is connected in line with your main power wire will help with ultimate protection against the elements.
- IP67 Waterproof Rating
- UV, Salt and Fog Protection
- Direct Power Harness Design with Marine Grade OFC Tinned Wires
- Latest Digital Amplifier Design with SMC Technology
- Maximum output of 500W x 3CH at 1-Ohms, 150W x 6CH at 4-Ohms, and 250W x 6CH at 2-Ohms

Specs:

POWER
- Total Watts (Peak) 3000W
- RMS Power @ 4 ohm 6 x 150W
- RMS Power @ 2 ohm 6 x 250W
- RMS Power @ 1 ohm -
- RMS Power @ 4 ohm Bridge 3 x 500W

AUDIO
- Frequency Response: 10Hz-20KHz
- Signal to Noise Ratio: 1W@4Ω > 84dB
- Efficiency @ 4ohm: 0.87
- Input Impedance: 20KΩ
- Channel Separation: 60dB
- Total Harmonic Distortion (THD): < 0.03%
- Low Level Input Range: 200mV-5V
- Selectable X-Over: Yes (HPF/Full/LPF)
- X-Over Filter Range: 40Hz-2KHz
- Bass Boost Range: N/A
- Bass Boost Frequency: N/A
- Infrasonic Filter: No
- Phase Selector: No

FEATURES
- Amplifier Class : Digital
- Amplifier Type: Stereo Full Range
- Number of Channels: 6
- Minimum Impedance: 2 Ohms (Stereo) / 4 Ohm (Bridge)
- Led Indicators Power / Protection / Clip
- Power Input Size 4GA Tinned OFC
- Fuse Size 2 x 60A (120A)
- Thermal Protection Yes (75°C)
- Over-Load Protection Yes
- Short Circuit Output Protection Yes
- Voltage Input Protection Yes (7-16V)
- Body Color / Finish Black Brushed Aluminum

MEASUREMENT
- Overall Length 14" / 360mm
- Overall Wide 4.4" / 112mm
- Overall Height 1.77" / 45mm
- Heatsink Length 12.5" / 320mm
- Gross Single Unit Weight 2.6kg

Package Dimension: (in inches)
- Length: 18
- Width: 9
- Height: 3.5
- Package Dimension (in pounds): 7.5

Item Dimension: (in inches)
- Length: 14
- Width: 4.25
- Height: 2
- Item Dimension (in pounds): 6
