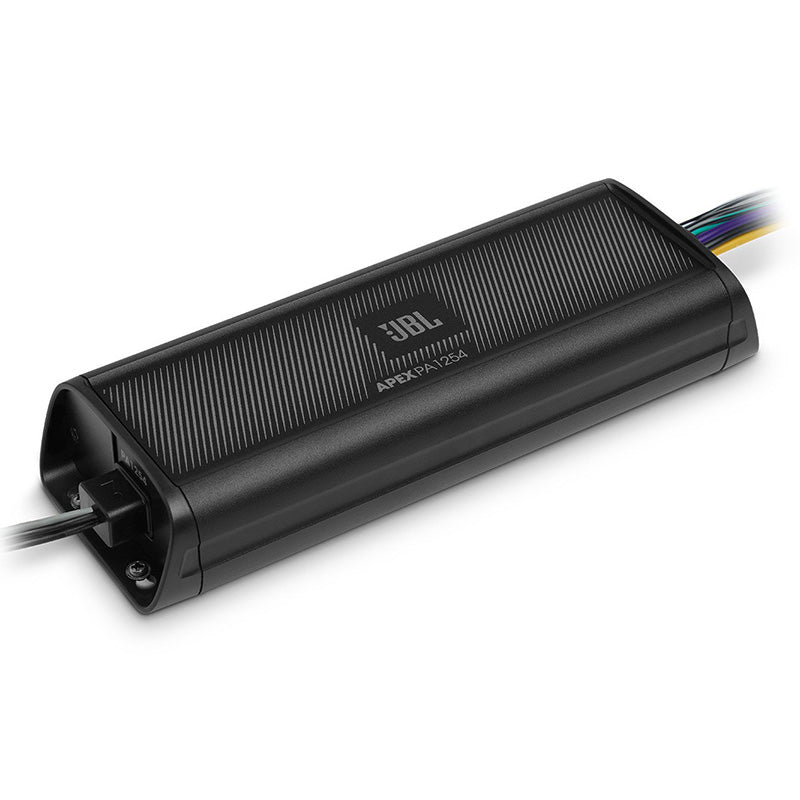

JBL Marine amplifier Apex PA1254

JBL Apex PA1254 Apex Series 125W x 4 @2Ohms, 1250W Max Power Class D 4-channel Weather-Resistant and Multi-Application Amplifier

We are a JBL authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• 4-Channel amplifier
• (4) Speaker to RCA adapters
• (2) 40-amp ATO fuses (1 installed/1 spare)
• (4) 5/8" Screws
• (4) 5" Zip ties
• (2) Window stickers
• Owner's manual (English/ French/ Spanish/ Portuguese/ Chinese/ Japanese/ Korean)

Ultra-compact Aluminum Chassis

JBL Apex powersports amplifiers feature an ultra-compact aluminum chassis and small footprint design to allow for installation almost anywhere.

Conformal-Coated PCB

JBL Apex powersports amplifiers are engineered to withstand harsh conditions, with fully “marinized” circuit boards to ensure flawless power delivery, year after year.


Big Dynamic Power

Dynamic Class D output power is perfectly matched to meet the needs for your JBL car, marine and powersports products.

Full-Range Outputs and Selectable Crossovers

The Apex PA1254 amplifier features front all-/high-pass crossover filters, selectable rear all-/hi-/lo-pass crossover filters, and front/rear selectable 12dB per octave electronic crossover slopes from 60-, 80-, 120Hz to allow for quick and easy installation.


High- and low-level inputs

Speaker-level and low-level inputs let JBL Apex amplifiers integrate with just about any audio input.

SPECIFICATIONS

Maximum Power : 1250 Watts

Number of Channels : 4

Frequency Response : 20-20000 Hz

RMS Power Output : 125x4 Watts

Channel Separation : Yes

Amplifier Class : D

Fuse Rating : 40 A

FEATURES

Features:

Ultra-compact Aluminum Chassis
Conformal-Coated PCB
Big Dynamic Power
Full-Range Outputs and Selectable
Crossovers
High- and low-level inputs
Harman Standard Reliability Testing
JBL Industrial Design


Specifications :

Max Power: 1250W peak
RMS Power Output @ 2 ohms (full-range): 125W x 4, <1% THD+N
RMS Power Output @ 4 ohms (full-range): 75W x 4, <1% THD+N
RMS Power Output @ 4 ohms Bridged (full-range): 250W x 2, <1% THD+N
Front selectable hi-pass filter: off, 60-, 80-, 120Hz @ 12dB/octave
Rear slectable all-/hi-/lo-pass filter: 60-, 80-, 120Hz @ 12dB/octave
Frequency Response: 20Hz – 20kHz
Signal-to-Noise Ratio (full-range): >75dB (ref 1W output @ 4Ω)
Fuse rating: 40A

UPC: 050036359108
Weight: 10
Authorized Internet Dealer




Warranty: 2 Year(s) Warranty.This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
