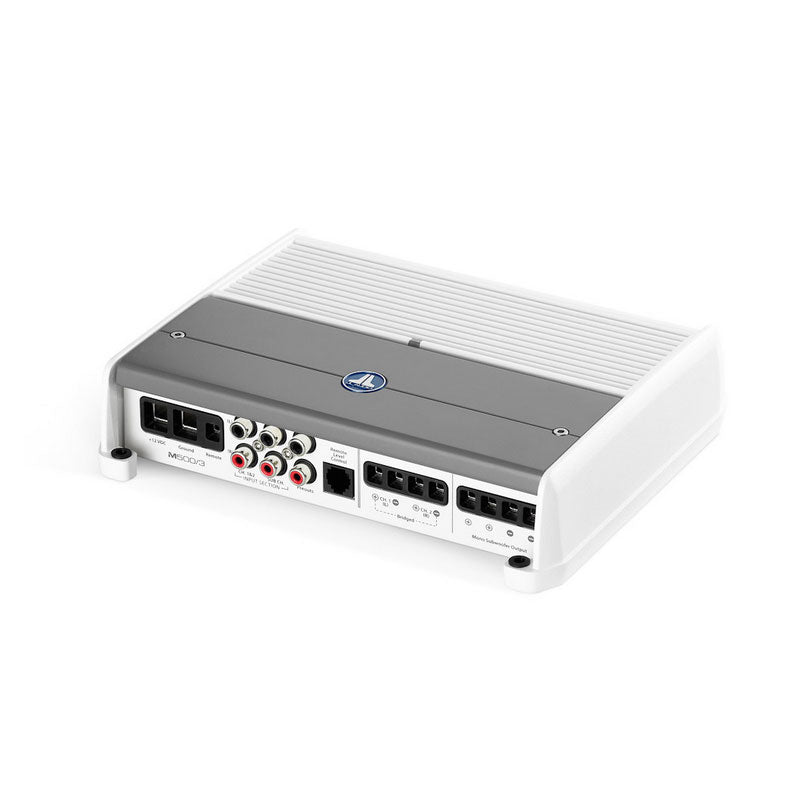

JL Audio Marine amplifier M-Series M500/3

JL Audio M500/3 M-Series 3-Channel 500W Max Power, Class-D Marine Amplifier

We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• M-Series 3-Channel Class-D Marine Amplifier
• 3-Channel Class-D marine amplifier
• 2.5mm Allen wrench
• JL Audio emblem
• Owner's Manual

Full-range Frequency Performance

Made to deliver an impressive full-range frequency performance for any marine application, the JL Audio M500/3 can bring you that audiophile sound quality while powering up your subwoofer and pair of speakers. The JL Audio M500/3 is equipped with the company's famous NexD Switching Technology, which uses a self-oscillating modulator to cancel out the noise from power supply voltage fluctuation.

Advanced Rollback Protection Circuit

The M500/3 also comes with an Advanced Rollback Protection circuit, which cuts back the amplifier's peak power output until it cools down to a much safer operating temperature, preventing it from unnecessary shutdowns. With its Class-D amp design, the JL Audio M500/3 can produce a power output of 180 Watts RMS in its subwoofer channel and 75 Watts RMS in the other two speaker channels at 4 ohms.


Accurate Sound Reproduction

It can also deliver a continuous power output of 300 Watts in its subwoofer channel and 100 Watts in its other four channels at 2 ohms. The M500/3 has an extensive full-range frequency response of 12 Hz to 22 kHz and can even go as deep as 10 Hz for its subwoofer channel, so you won't have to worry about accurate sound reproduction.

SPECIFICATIONS

Maximum Power : 500 Watts

Low Frequency Response : 50 Hz

High Frequency Response : 500 Hz

Number of Channels : 3

Frequency Response : 50-500 Hz

Amplifier Class : D

Promo : Yes

FEATURES

Features:

3-channel marine amplifier
75 watts RMS x 2 + 180 watts RMS x 1 at 4 ohms
100 watts RMS x 2 + 300 watts RMS x 1 at 2 ohms
200 watts RMS x 1 in bridged mode (4-ohm stable in bridged mode)
Class-D design
white and gray powder-coat finish, gasketed cover for controls, and stainless steel hardware
high-pass filter and variable low-pass sub filter (50-500 Hz, 12 dB per octave)
optional remote level control
preamp outputs
4-gauge power and ground leads recommended — wiring and hardware not included with amplifier
8-9/16"W x 2-1/16"H x 7-1/8"D

UPC: 699440982771
Weight: 7
Authorized Internet Dealer




Warranty: 2 Year(s) Warranty.This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
