JL Audio Marine Speakers M6-103EWS-Gw-C-3Gw-L

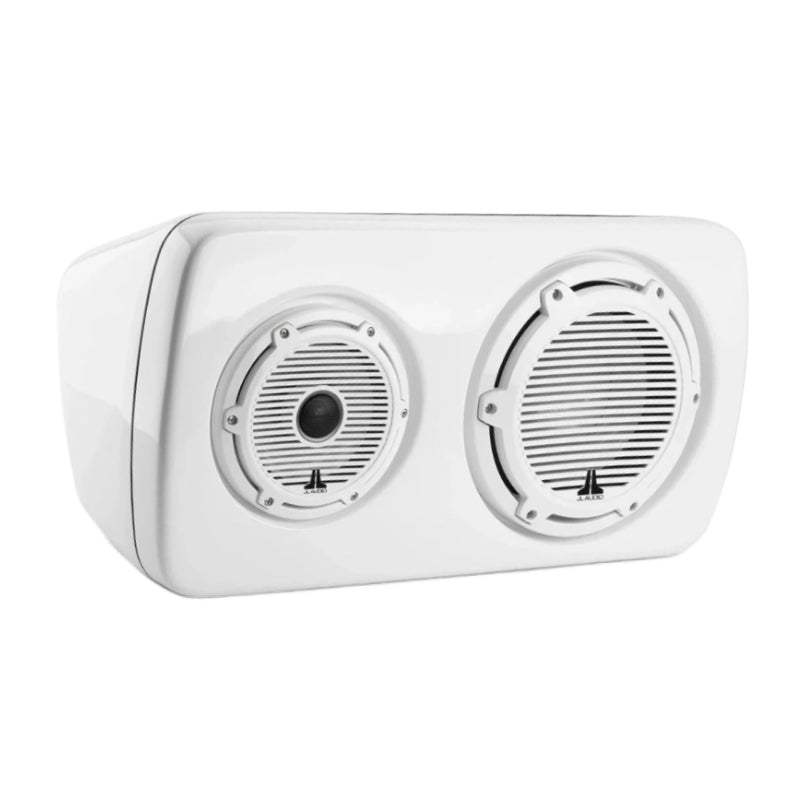

JL Audio M6-103EWS-Gw-C-3Gw-L M6 Series 10" 150W RMS (250W Peak Power Handling) 4 Ohms, 3-Way Full Range Enclosed Speaker System in White Tweeter Mesh. left Side with 7.7" Coaxial Marine Speaker

We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• 10" M6 Series 3-Way Full Range Enclosed Speaker
• Owner's Manual

3-Way System – Full-Range Marine Power

Experience high-output, full-range sound with a 10" marine subwoofer and 7.7" coaxial speaker in a dual-chamber enclosure—deep, rich sub-bass from the larger chamber and crisp mids/highs from the coaxial chamber. Bi-amplified design with active crossovers (subwoofer low-pass 80?Hz, coaxial high-pass 80?Hz) delivers tight, balanced, distortion-free performance. Recommended power: subwoofer 150–250?W RMS, coaxial 75–150?W RMS for maximum clarity and punch—perfect for larger vessels and party decks.

Rugged, Marine-Grade Performance

Built with marine-grade materials—including mica-filled polypropylene cones, synthetic rubber surrounds, fiber spiders, corrosion-resistant polymer baskets, and gold-plated brass terminals—this system delivers long-lasting durability in harsh marine conditions. DMA-optimized motor technology reduces distortion and improves transient response for tight, clean bass. Rugged aluminum mounting plates with stainless steel hardware and a protective grommet ensure secure, neat installation on any vessel.


Sleek & Custom-Fit

Gloss white enclosures and grilles with white tweeter mesh provide a modern, seamless look for any boat interior. Available in left- or right-side models for proper fit and orientation. Professional installation is recommended for safety, peak performance, and long-term reliability.

SPECIFICATIONS

Diameter : 10 Inch

Impedance : 4 Ohm

Frequency Response : 45-25000 Hz

Peak Power Handling : 250 Watts

Color : White

RMS Power Handling : 150 Watts

FEATURES

Features:

Full-Range 3-Way Performance: Combines a maximum-performance 10" marine subwoofer with a 7.7" coaxial speaker to deliver high-output, full-range sound ideal for larger vessels and party decks.
Dual-Chamber Enclosure: Larger chamber houses the 10" subwoofer for deep, high-quality sub-bass, while a smaller chamber houses the 7.7" coaxial driver for detailed mids and highs.
Bi-Amplified Design: Optimized for separate amplifier channels with active crossover filtering (subwoofer low-pass 80 Hz, coaxial high-pass 80 Hz) to achieve tight, balanced, and distortion-free performance.
High-Powered Drivers: Subwoofer recommended at 150–250 W RMS, coaxial at 75–150 W RMS for maximum clarity, punch, and impact.
Marine-Grade Materials: Injection-molded mica-filled polypropylene cones with synthetic rubber surrounds, marine-grade fiber spiders, corrosion-resistant polymer baskets, and gold-plated brass terminals ensure long-lasting durability in harsh marine environments.
DMA-Optimized Motor: Proprietary Dynamic Motor Analysis technology reduces distortion, improves transient response, and delivers tight, clean, articulate bass.
Rugged Construction: Aluminum mounting plate with stainless steel hardware secures the enclosure, and a grommet provides neat, protected cable exit.
Built in the USA: Manufactured in JL Audio’s Miramar, Florida factory with global components to meet the highest quality standards.
Gloss White Finish: Stylish gloss white enclosure and grille with white tweeter mesh blend seamlessly with boat interiors while maintaining a modern look.
Left- or Right-Side Models: Specific enclosures are available for left-side or right-side installations, ensuring proper fit and orientation.
Professional Installation Recommended: For safety, optimal performance, and longevity, professional installation is highly recommended.


Specifications:

System Type: 3-Way Marine Speaker System
Subwoofer Size: 10"
Coaxial Speaker Size: 7.7"
Design: Bi-amplified with active crossover
Enclosure Type: Sealed dual-chamber
Enclosure Color: Gloss White
Grille Color: Gloss White Classic
Subwoofer Cone Material: Injection-molded mica-filled polypropylene
Coaxial Cone Material: Injection-molded mica-filled polypropylene
Subwoofer Surround: Synthetic rubber
Coaxial Surround: Synthetic rubber
System Nominal Impedance: Subwoofer 4 Ω / Coaxial 4 Ω
Continuous Power Handling (RMS): Subwoofer 250 W / Coaxial 100 W
Recommended Amplifier Power (RMS): Subwoofer 150–250 W / Coaxial 75–150 W
Frequency Response: 45 Hz – 25 kHz (coaxial)
Tweeter Design: 1" Dome
Tweeter Composition: Treated silk
Top-Mount Depth: 11.96" / 304 mm
Bottom-Mount Depth: N/A
Enclosure Width: 25.90" / 658 mm
Enclosure Height: 13.62" / 346 mm
Weight: 42 lb / 19.05 kg
Mounting Hardware: Included (aluminum plate & stainless steel hardware)
Left- or Right-Side Models: Yes

UPC: 699440901970
Weight: 20
Authorized Internet Dealer




Warranty: 2 Year(s) Warranty.This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
