JL Audio Marine amplifier MHD750/1

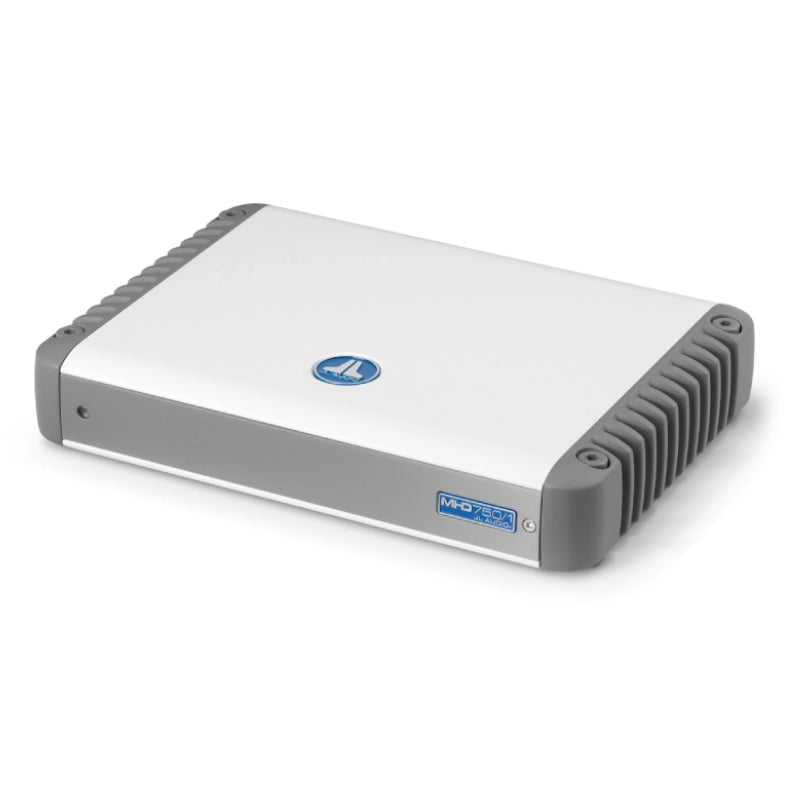

JL Audio MHD750/1 MHD Series 750W RMS x 1 at 2 Ohms, Class-D Mono Subwoofer Marine Amplifier

We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• MHD Series Class-D Mono Subwoofer Marine Amplifier
• MHD amplifier
• Power input plug
• Speaker connection plug(s)
• (4) mounting feet
• 2.5 mm Allen wrench
• 4 mm Allen wrench
• (4) machine screws
• JL Audio badge
• Owner's Manual





Engineered for Exceptional Sound and Durability

Unlock the versatility of your marine audio system with this amplifier, capable of driving high-performance mid and high-frequency speaker systems, all while boasting marine-grade construction with durable white and gray powder-coat finishes. With a gasketed cover for optimal control protection and corrosion-resistant stainless steel hardware, it’s designed to endure the toughest marine conditions, ensuring exceptional sound quality on every adventure.

Experience Pristine Sound with Revolutionary Single Cycle Control™ Technology

Experience unmatched sound quality with the MHD750/1 amplifier, featuring revolutionary Single Cycle Control™ technology that corrects distortion over 400,000 times per second for pristine audio performance. With an impressive efficiency that reduces current draw by 60% compared to traditional Class A/B amplifiers, this compact powerhouse not only delivers superior fidelity but also generates less heat, making it the perfect choice for high-performance marine audio systems.


Unleash Consistent Power and Clarity with R.I.P.S. Technology

Transform your marine audio setup with the MHD750/1 amplifier, equipped with innovative R.I.P.S. (Regulated, Intelligent Power Supply) technology. This cutting-edge system ensures stable power delivery and minimal distortion across varying battery voltages and load impedances, providing you with reliable, high-quality sound performance for all your aquatic adventures.

SPECIFICATIONS

Low Frequency Response : 50-500 Hz

High Frequency Response : 50-500 Hz

Number of Channels : 1

Frequency Response : 6-8000 Hz

Built In Crossovers : Yes

RMS Power Output : 1x750 Watts

Amplifier Class : D

Fuse Rating : 1x60 A

FEATURES

Features:

Amplifier Type: Monoblock Class D marine wide-range amplifier
Power Output: 750 W x 1 @ 1.5-4 Ω
Technology: Utilizes Single-Cycle Control switching design for superior performance
R.I.P.S. Technology: Regulated, Intelligent Power Supply for tight power regulation and low distortion
Flexibility: Compatible with various impedances (1.5 to 4 Ω) for designing subwoofer systems
Bass Performance: Maximizes bass performance with ultra-low distortion
Full-Range Capability: Can also drive high-performance mid and high-frequency speaker systems
Marine-Grade Construction: Features durable white and gray powder-coat finishes
Control Protection: Gasketed cover to protect controls from the marine environment
Corrosion Resistance: Stainless steel hardware for enhanced durability in harsh marine conditions


Specifications:

RMS Power Output (Watts x Channels): 750 x 1
THD at Rated RMS Power: 0.03%
Signal to Noise Ratio: 111 dB
Input Voltage: 14.4v
Peak Power Output (Watts x Channels): N/A
Power at 2 Ohms (Watts x Channels): 750 x 1
Minimum Impedance Unbridged: 1.5
Amplifier Class: D
Low-Pass Crossover Frequency: 50-500 Hz
Low-Pass Slope (dB/octave): 12 or 24 dB/octave
High-Pass Crossover Frequency: 50-500 Hz
High-Pass Slope (dB/octave): 12 or 24 dB/octave
Bass Boost: No
Bass Boost Frequency: N/A
Fan Cooled: No
Fuse Rating: 60
Speaker Level Inputs: Yes
Preamp Outputs: 2
Height (inches): 2

UPC: 699440982252
Weight: 8
Authorized Internet Dealer




Warranty: 2 Year(s) Warranty.This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.


Do you own this product?
Write a review!






I had ordered the non marine version and they sent me this one so i went ahead and had it installed with the jl 13w6 and the head unit is a pioneer avh-p8400. Im really happy with the end result is a very good amp doesnt over heat it was a great buy. It way better than my old set up 2 12kenwood's and a 1800w kenwood amp.







Tony

7/1/2012













this perfect little size monster is definitely worth it and worth the money tested it for a while didn't disappoint







Hend

11/11/2019
