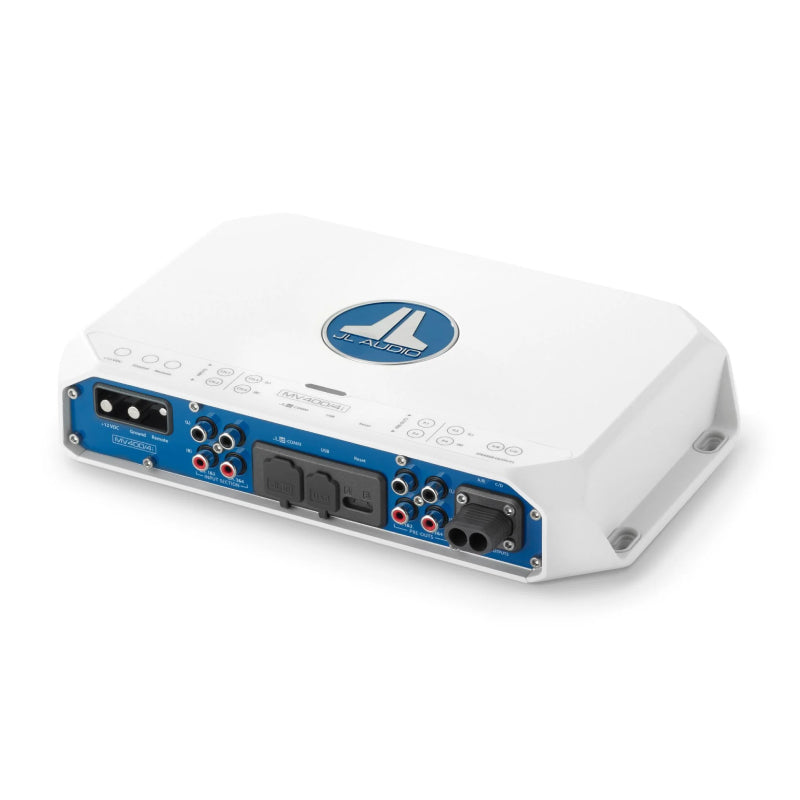

JL Audio Marine amplifier MVi Series MV400/4i

JL Audio MV400/4i MVi Series 4-Channel 100W RMS x 4 at 2 Ohms, Class-D Marine Amplifier

We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• MVi Series 4-Channel Class-D Marine Amplifier
• MVi amplifier
• Power connector
• Speaker output harnesses
• 6-foot USB A/B cable
• RCA Terminal covers (installed)
• (4) stainless steel mounting screws
• 2.5 mm Allen wrench
• 3 mm Allen wrench
• Owner's Manual





Exceptional Audio Performance with Durable Design and Advanced DSP Features

Experience exceptional audio performance with our durable cast alloy chassis featuring a marine-grade powder coat finish and corrosion-resistant hardware. The onboard Digital Signal Processor (DSP) optimizes channel timing and output levels through user-friendly TüN™ Software on your device. Plus, enjoy versatile inputs and outputs, including Differential-Balanced Analog Inputs for superior noise rejection and Analog Pre-Outs with independent DSP processing for a customized audio experience.

Enhance Your Audio Setup with JLid™ System Command and Essential Accessories

Unlock seamless audio control with our JLid™ System Command and Control, allowing effortless communication with VXi amplifiers and networking for up to six MVi amplifiers. Enhance your setup with optional accessories like the VXi-BTC Bluetooth® Communicator for wireless configuration, the M-DRC-50 for easy access to six DSP presets, and the MVi-HUB JLid-COMM for comprehensive system control. Plus, enjoy essential included items such as a Power Connector for 4 AWG wire, two Speaker Output Harnesses, and a 6 ft A/B USB Cable for a complete, ready-to-use experience.

Unlock Superior Sound with NexD2™ Switching Technology

Experience unparalleled audio quality with the JL Audio MV400/4i, featuring our advanced NexD2™ Switching Technology that enhances fidelity and efficiency. This innovative amplifier utilizes cutting-edge components and a unique circuit layout, minimizing distortion and radiated noise for crystal-clear sound. With on-board DSP synchronization, the MV1000/5i delivers precise audio performance, making it the perfect choice for discerning listeners who demand the best in their marine audio experience.

SPECIFICATIONS

Number of Channels : 4

Frequency Response : 12-24000 Hz

RMS Power Output : 4x100 Watts

Amplifier Class : D

Fuse Rating : 1x40 A

FEATURES

Features:

Power Output: 100 W x 4 @ 2 Ω, 75 W x 4 @ 4 Ω; Bridged Power: Up to 200 W x 2 @ 4 Ω.
Advanced NexD2™ Technology: Second-generation NexD2™ technology enhances fidelity and efficiency, featuring DSP-controlled full-range technology with DirectFET™ outputs for low noise and exceptional performance.
Compact and Durable Design: Cast alloy chassis with a marine-grade powder coat finish and corrosion-resistant hardware and connectors for enhanced durability.
Integrated Digital Signal Processor (DSP): Onboard DSP optimizes channel timing, frequency response, and output levels, with TüN™ Software for easy setup and adjustments via PC, tablet, or smartphone.
Ultra-Versatile Inputs/Outputs: Differential-Balanced Analog Inputs (up to 16V RMS) provide outstanding noise rejection, along with Analog Pre-Outs featuring independent DSP processing (4V RMS Max).
JLid™ System Command and Control: Proprietary protocol enables communication and control of VXi amplifiers and accessories, supporting networking for up to six MVi amplifiers.
Optional Accessories: Includes VXi-BTC Bluetooth® Communicator for wireless configuration, M-DRC-50 for activating up to six DSP presets, and MVi-HUB JLid-COMM for full-system DRC control and preset selection.
Included Accessories: Comes with a Power Connector (for 4 AWG wire), two Speaker Output Harnesses, and a 6 ft A/B USB Cable.


Specifications:

RMS Power Output: 75 x 4 Watts
Frequency Response at Rated RMS Power: 12-24 kHz
Total Harmonic Distortion (THD) at Rated RMS Power: 1%
Signal to Noise Ratio: 99 dB
Input Voltage: 14.4V
Peak Power Output: N/A
Power at 2 Ohms: 100 x 4 Watts
Bridged Power: 200 x 2 Watts
Minimum Impedance Bridged: 4 Ω
Minimum Impedance Unbridged: 2 Ω
Amplifier Class: D
Low-Pass Crossover Frequency: Via TüN Software
Low-Pass Slope (dB/octave): Via TüN Software
High-Pass Crossover Frequency: Via TüN Software
High-Pass Slope (dB/octave): Via TüN Software
Bass Boost: Via TüN Software
Bass Boost Frequency: Via TüN Software
Fan Cooled: No
Fuse Rating: 40A
Speaker Level Inputs: Yes
Preamp Outputs: 4

UPC: 699440986472
Weight: 5
