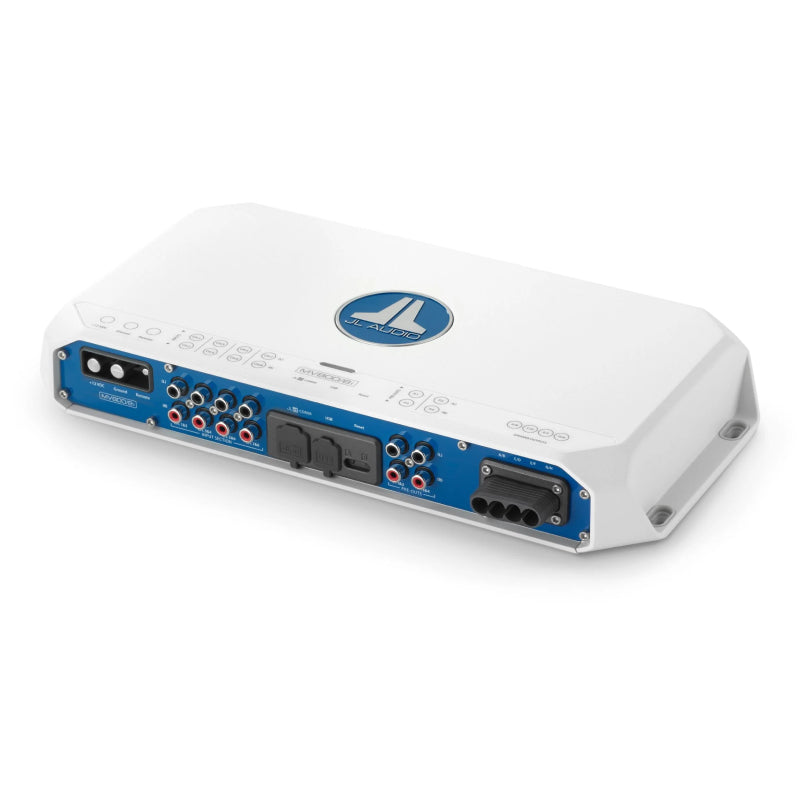

JL Audio Marine amplifier MV800/8i

JL Audio MV800/8i MVi Series 8-Channel 100W RMS x 8 at 2 Ohms, Class-D Marine Amplifier with Integrated DSP

We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• MVi Series 8-Channel Class-D Marine Amplifier
• MVi amplifier
• Power connector
• Speaker output harnesses
• 6-foot USB A/B cable
• RCA Terminal covers (installed)
• (4) stainless steel mounting screws
• 2.5 mm Allen wrench
• 3 mm Allen wrench
• Owner's Manual





Unprecedented Onboard DSP Tuning Power at Your Fingertips

Experience exceptional sound quality with the MV800/8i amplifier, featuring unprecedented onboard DSP tuning power that optimizes timing, frequency response, and output levels—all effortlessly controlled through the user-friendly TüN™ Software on your favorite devices.

Versatile Inputs/Outputs and Seamless JLid™ System Integration

Discover the ultimate flexibility with the MV800/8i amplifier, offering ultra-versatile analog and digital inputs/outputs for superior signal quality, along with JLid™ System command and control for effortless integration with VXi amplifiers and accessories.

Unlock Superior Sound with NexD2™ Switching Technology

Elevate your marine audio experience with the JL Audio MV800/8i, designed for those who refuse to compromise on sound quality. Featuring advanced NexD2™ Switching Technology, this amplifier enhances fidelity and efficiency, ensuring your music sounds as intended. With premium components and a unique circuit layout that minimizes distortion and noise, the MV700/5i delivers crystal-clear sound. Plus, its onboard DSP synchronization guarantees precise audio performance, making it the perfect choice for discerning listeners.

SPECIFICATIONS

Number of Channels : 8

Frequency Response : 12-21000 Hz

Built In Crossovers : Yes

RMS Power Output : 8x100 Watts

Amplifier Class : D

Fuse Rating : 1x80 A

FEATURES

Features:

Unprecedented Onboard DSP Tuning Power: Optimize timing, frequency response, and output levels for exceptional sound quality with powerful DSP and TüN™ Software for fast, easy setup on various devices.
2nd-Gen NexD2™ Switching Amplifier Technology: Enjoy reference-grade power and efficiency with advanced high-speed switching and DSP-synchronized power supply for low noise and distortion.
Ultra-Versatile Analog and Digital Inputs/Outputs: Utilize differential-balanced analog inputs for signals up to 16V RMS with excellent noise rejection and independent DSP processing via analog pre-outs (4V RMS Max).
JLid™ System Command and Control: Leverage proprietary protocol for seamless control and communication between VXi amplifiers and optional JLid™ accessories.


Specifications:

RMS Power Output: 75 x 8 Watts
Frequency Response at Rated RMS Power: 12-21k Hz
Total Harmonic Distortion (THD) at Rated RMS Power: 1%
Signal to Noise Ratio: 99 dB
Input Voltage: 14.4V
Peak Power Output: N/A
Power at 2 Ohms: 100 x 8 Watts
Bridged Power: 200 x 4 Watts
Minimum Impedance Bridged: 4 Ohms
Minimum Impedance Unbridged: 2 Ohms
Amplifier Class: D
Low-Pass Crossover Frequency: Via TüN Software
Low-Pass Slope (dB/octave): Via TüN Software
High-Pass Crossover Frequency: Via TüN Software
High-Pass Slope (dB/octave): Via TüN Software
Bass Boost: Via TüN Software
Bass Boost Frequency: Via TüN Software
Fan Cooled: No
Fuse Rating: 80
Speaker Level Inputs: Yes
Preamp Outputs: 4
Height: 2-1/8 inches
Width: 14 inches
Depth: 8-3/8 inches

UPC: 699440986496
Weight: 5
