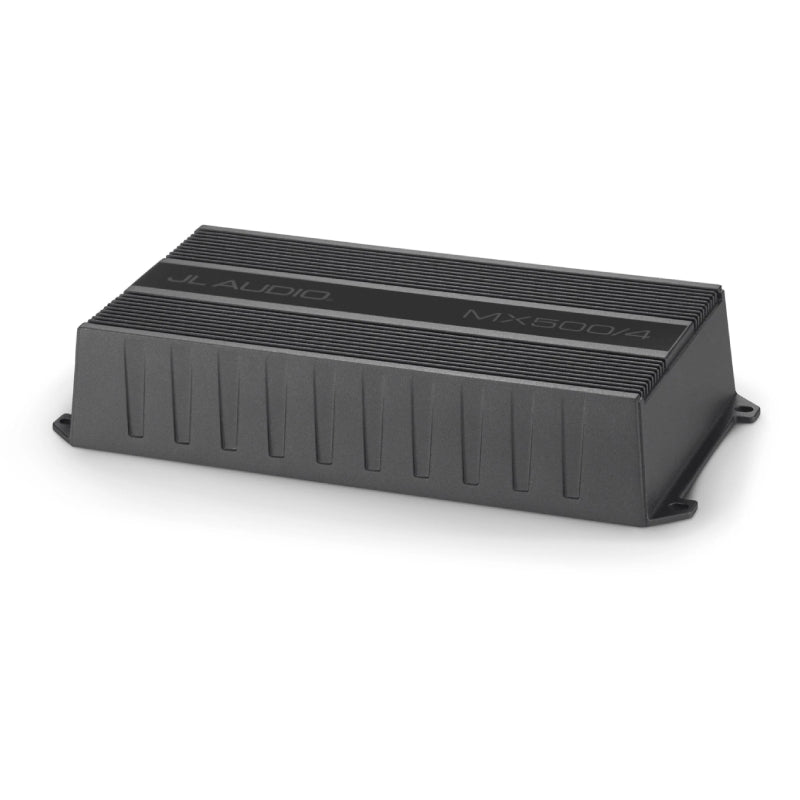

JL Audio Marine amplifier MX500/4

JL Audio MX500/4 MX Series 4-Channel 125W RMS x 4 at 2 Ohms, Class-D Marine Amplifier

We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• MX Series 4-Channel Class-D Marine Amplifier
• 4-Channel marine amplifier with 12" power/signal pigtails
• (4) Self-tapping screws (1" length)
• Owner's Manual





Unbeatable Performance and Versatility for Powersports Audio

Experience unbeatable performance with a durable, corrosion-resistant cast aluminum chassis and an IPX7 water-resistance rating, making it perfect for powersports. Enjoy the versatility of a fully bridgeable design, allowing you to use it as a powerful 3-channel or 2-channel amplifier (250W x 2 into 4 ohms). Plus, take control of your sound with independent crossovers featuring selectable full-range, high-pass, or low-pass filters for both front and rear channels.

Seamless Connectivity and Rugged Durability for Long-Lasting Performance

Enjoy seamless connectivity with a dual-range input section that accepts everything from line-level to high-power speaker signals. The rugged, powder-coated finish and gasketed control cover ensure durability and protection against the elements, while stainless steel hardware enhances corrosion resistance for long-lasting performance.

Unleash Superior Sound with NexD™ Switching Technology

Experience the MX500/4 Amplifier, equipped with NexD™ Switching Technology for exceptional audio quality and efficiency in a compact design. Engineered for powersports, it delivers clean, powerful sound with minimal distortion and rock-solid bass performance, ensuring your audio experience reaches new heights on any adventure.

SPECIFICATIONS

Low Frequency Response : 35-300 Hz

High Frequency Response : 35-300 Hz

Number of Channels : 4

Frequency Response : 20-20000 Hz

Built In Crossovers : Yes

RMS Power Output : 4x125 Watts

Channel Separation : Yes

Amplifier Class : D

Fuse Rating : 1x50 A

Promo : Yes

FEATURES

Features:

Power Output: 125 W x 4 @ 2 Ω; 70 W x 4 @ 4 Ω (14.4V, 1% THD).
NexD™ Switching Design: Delivers clean power without straining charging systems.
Durable Construction: Corrosion-resistant cast aluminum chassis; IPX7 water-resistance rating, perfect for powersports.
Versatile Configuration: Fully bridgeable for use as a 3-channel or 2-channel amplifier (250W x 2 into 4 ohms).
Independent Crossovers: Selectable full-range, high-pass, or low-pass filters for front and rear.
Dual-Range Input Section: Accepts line-level to high-power speaker level signals.
Rugged Finish: Powder-coated for durability; gasketed control cover for protection against elements.
Stainless Steel Hardware: Provides enhanced corrosion resistance and longevity.


Specifications:

RMS Power Output (Watts x Channels): 70 x 4
Peak Power Output (Watts x Channels): N/A
Power at 2 Ohms (Watts x Channels): 125 x 4
Power at 1 Ohm (Watts x Channels): ---
Bridged Power (Watts x Channels): 250 x 2
Minimum Impedance Bridged: 4 Ω
Minimum Impedance Unbridged: 2 Ω
Minimum Impedance: 2 Ω
Best Frequency Response: 20-20 kHz
THD at Rated RMS Power: 1%
Signal to Noise Ratio: 88 dB
Input Voltage: 14.4V
Amplifier Class: D
Low-Pass Crossover Frequency: 35-300 Hz
Low-Pass Slope (dB/octave): 12 dB/oct
High-Pass Crossover Frequency: 35-300 Hz
High-Pass Slope (dB/octave): 12 dB/oct
Bass Boost: No
Bass Boost Frequency: N/A
Fan Cooled: No
Fuse Rating: 50A
Speaker Level Inputs: Yes
Preamp Outputs: No
Width (inches): 9-3/8
Height (inches): 1-13/16
Depth (inches): 4-9/16

UPC: 699440984089
Weight: 5
Authorized Internet Dealer




Warranty: 2 Year(s) Warranty.This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
