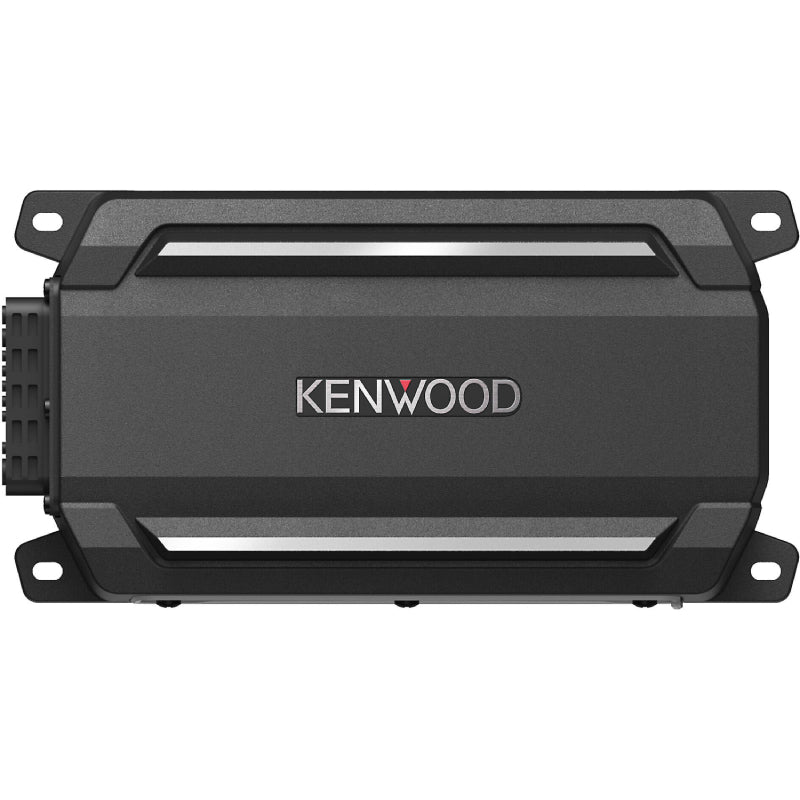

Kenwood Marine amplifier KAC-M5014

Kenwood KAC-M5014 Powersports 4-Channel Marine/Powersports Amplifier

We are a Kenwood authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• 4-Channel moto-marine amplifier
• Power/ground/input-output harness (installed) w/ inline fuse holder
• (1) 40-amp ATC fuse (installed)
• (4) 5/8" screws
• (2) 4" wire ties
• Owner's Manual

WaterPROOF,DustPROOF & Salt Spray PROOF

IPX7/IPX6/IP6X certified. The amplifier can be submerged in up to 3.3 feet of water for 30 minutes, and can resist high-pressure, heavy sprays of water.ASTM B117 salt spray (or salt fog) corrosion testing ensures the amplifier will not corrode or fail in saltwater and other harsh environments.

Adding Clarity And Impact To Your Music

Kenwood's compact KAC-M5014 four-channel marine and powersports amplifier delivers a solid 50 watts RMS per channel, over-powering noise from wind, water, or the trail, and adding clarity and impact to your music. The amp features conformal-coated circuit boards and protective covers for its connections, so the music won't stop just because the amp got a little wet or dirty.

High-level Speaker Wiring

BThe KAC-M5014 will accept an input signal from just about any source, whether it's RCA cables from an aftermarket receiver or the high-level speaker wiring from a factory radio. The high-level inputs can sense the signal and turn the amplifier on, so you won't need to run a separate remote turn-on lead from the receiver or factory fuse box. The amp's high- and low-pass filters let you tune the sound to match your speakers and their locations.

SPECIFICATIONS

Low Frequency Response : 50-200 Hz

High Frequency Response : 50-200 Hz

Number of Channels : 4

Built In Crossovers : Yes

RMS Power Output : 75x4 Watts

Channel Separation : Yes

Amplifier Class : D

Fuse Rating : 40 A

FEATURES

Features:

Marine Amplifier: The Kenwood KAC-M5014 is a Class-D 4-channel amplifier that can provide 50 watts RMS per channel into a 4? or 75 watts per channel into a 2? load, and is designed for the marine environment. The marine amp carries an IP66/67, ASTM B117 waterproof rating.
CTA-2006 Compliant: CTA-2006 is a system of testing and measurement for mobile audio amplifiers. This voluntary standard advocates a uniform method for measuring an amplifier's RMS power output and signal-to-noise ratio. The criteria for measuring amplifier power uses a DC input voltage of 14.4 volts and the RMS power output is measured over a frequency range of 20Hz to 20kHz (for full range amplifiers), with 1% or less Total Harmonic Distortion plus noise (THD+N). Signal-to-Noise ratio is measured in weighted absolute decibels (dBA) at a reference of 1 watt into 4 ohms. CTA-2006 standards allow consumers to compare amplifiers and receivers under the same conditions (apples to apples).
Speaker Level Input: Two sets of RCA input jacks can be used for preamp level or speaker level input signals. If connecting the source unit's speaker wire to the input jacks, a pair of speaker to line-level adapters will be required (sold separately). When using a speaker level input signal, it may not be necessary to connect a remote turn-on lead because of the amplifier's signal sensing function.
Protection Circuits: The Kenwood KAC-M5014 uses a microprocessor to provide protection against over-heating, shorted speaker wires, low impedance on an output channel, and if a DC signal is sent to the speaker outputs.


Specifications:

RMS Power Output (Watts x Channels): 50 x 4
Peak Power Output (Watts x Channels): 150 x 4
Power at 2 Ohms (Watts x Channels): 75 x 4
Bridged Power (Watts x Channels): 150 x 2
Minimum Impedance Bridged: 4
Minimum Impedance Unbridged: 2
Minimum Impedance: 2
Best Frequency Response: 10-35k Hz
THD at Rated RMS Power: 1%
Signal to Noise Ratio: 77 dB
Input Voltage: 14.4v
Amplifier Class: D
Low-Pass Crossover Frequency: 50-200 Hz
Low-Pass Slope (dB/octave): 12 dB/octave
High-Pass Crossover Frequency: 50-200 Hz
High-Pass Slope (dB/octave): 12 dB/octave
Bass Boost: No
Bass Boost Frequency: N/A
Fan Cooled: No
Fuse Rating: 40
Speaker Level Inputs: Yes
Preamp Outputs: No
Width (inches): 9-3/4
Height (inches): 2
Depth (inches): 4-3/16
Parts Warranty: 1 Year
Labor Warranty: 1 Year

UPC: 0019048232267
Weight: 6
