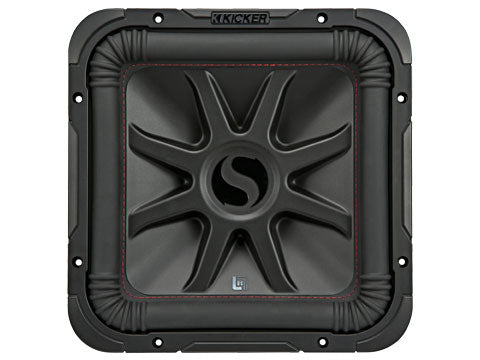

• 12 inch L7R front

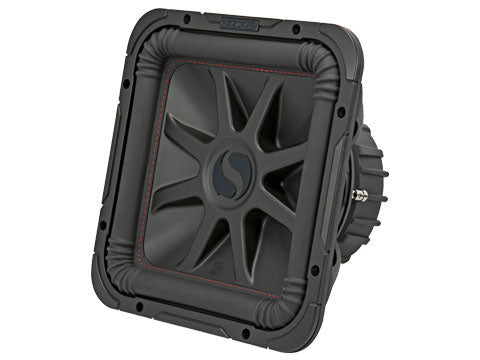

  • 12 inch L7R three-quarter

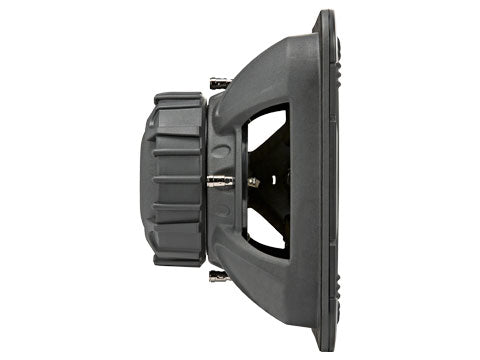

  • 12 inch L7R side

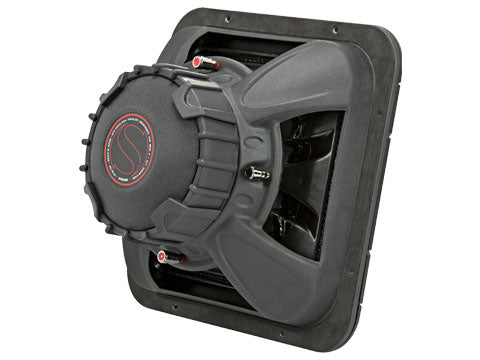

  • 12 inch L7R back

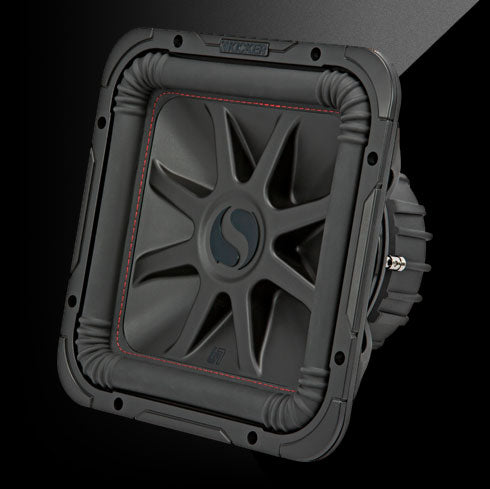

  • 45L7R124 - 12" 4 Ω DVC

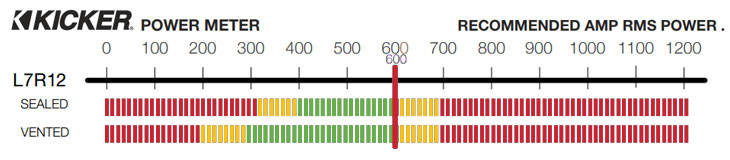

  • Graph showing recommended amplifier power is 600 watts RMS for the L7R12.
  • 45L7R124 - 12" 4 Ω DVC
  • 45L7R124 - 12" 4 Ω DVC
  • 45L7R124 - 12" 4 Ω DVC
1 9

Kicker

Kicker Car Subwoofer 45L7R124

Kicker Car Subwoofer 45L7R124

$269.99 USD
$269.99 USD
Sale Sold out
✔ In Stock & Ready To Ship
View full details
Mei from Wide Open Sound

Wide Open Sound · Curated gear

Kicker Car Subwoofer 45L7R124

WOS Pick What these speakers do in 10 seconds — expand for full specs.

  • BrandKicker
  • SKU45L7R124
  • RMS600
  • Ohms4 DVC
Mei says

"Speakers are where the sound actually happens. Right size + power match = instant upgrade."

The stuff you'll actually notice
  • RMS: 600.
Product description

The 12-inch L7R Square Sub moves more air and delivers bigger bass, so you get more bump out of every watt!

The Original

  • Dual Four-Ohm Voice Coil
  • Wrap Around Gasketing
  • Patented Ribbed Corners
  • Injection-Molded SoloKon™ Woofer
  • 360-Degree Back Bracing
  • UniPlate™ Back Plate And Pole Piece
  • Bumped Back Plate
  • Thick Tinsel Leads
  • Large Ceramic Magnet
  • Steel Basket With Spoke Design
  • Nickel Plated Speaker Terminals

Originator, n. (əˈrijəˌnādər): see KICKER

The engineers at KICKER invented the original square sub right here in Stillwater, Oklahaoma. Designed to give you more bass, yet take up no more air space than a standard round sub. Welcome to the incredible world of the L7R!

The L7R 12-Inch Subwoofer works best with 600 watts of recommended power in a sealed or ported enclosure. See below for more details.

Specifications

CNC Software L7S-L7R.DXF - for subwoofer hole cutouts
3D Printing Software L7S-L7R.SLDPRT - 3D-printing of grille spacers
SIZE [in, cm] 12, 30
IMPEDANCE [Ohms] 4 DVC
Recommended Amplifier Power (watts RMS) 600
Peak Power (watts, per ANSI/CTA-2031-A) 1200
SENSITIVITY [dB 1w/1m] 86.7
MOUNTING DEPTH [in, cm] 6-7/8, 17.4
MOUNTING DIAMETER [in, cm] 11-1/16, 28.1
MIN SEALED BOX VOL [cu. ft, L] .88, 24.92
MAX SEALED BOX VOL [cu. ft, L] 2, 56.64
MIN VENTED BOX VOL [cu. ft, L] 1.75, 49.6
MAX VENTED BOX VOL [cu. ft, L] 3.25, 92
What's in the Box 1 - 12" Subwoofer, 1 - install manual, 2 - Kicker stickers
Speaker specs
Speaker Size (Mid) 12"
Impedance 4 DVC
RMS Power 600
Peak Power 1200
