Kicker Car Subwoofer 46L7T124
WOS Pick What these speakers do in 10 seconds — expand for full specs.
- BrandKicker
- SKU46L7T124
- RMS600
- Ohms4 DVC
Mei says"Speakers are where the sound actually happens. Right size + power match = instant upgrade."
The stuff you'll actually notice
- RMS: 600.
Product description
The only thing thin about the L7T thin subwoofer is the mounting depth. Whether it’s on the road or trail, these tough subs work perfectly in nearly anything with a motor.

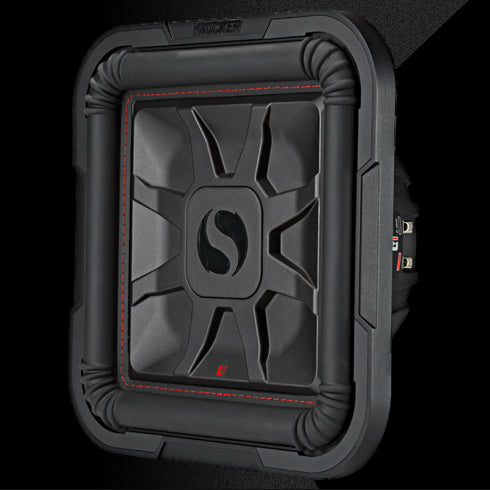

12" L7T 4 Ohm
- Uses a Sealed or Ported Enclosure
- Square Sub Design Moves 20% More Air Than Round Subwoofers
- Easily Mounts Under or Behind a Seat
- Dual Voice Coil Design
- Ribbed Santoprene Surround Resists Heat And Degrading
- Bumped Top Plate For More Excursion & Smoother Performance
- SoloKon™ Cone With 360-Degree Back Bracing
- UniPlate™ Solid Pole Piece & Backplate For Excellent Heat Dissipation
- Durable Steel Basket
The L7T 12-inch Subwoofer is a true-bass, thin subwoofer with a pair of 4Ω voice coils.
With our custom SoloKon™ technology and the L7T’s unique interior support system, the sub sounds fat – but keeps it thin! Match any L7T thin sub with a KX-Series mono amplifier for an outstanding combination of power and size.
Features:
Want setup help? Go to KICKER U for a free woofer & amplifier configuration app!

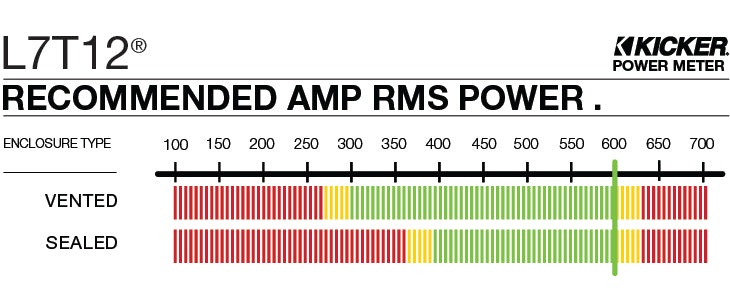

*The L7T 12-inch Subwoofer works best with a sealed or ported enclosure and 600 watts of recommended power. See below for more details.
Specifications
| CNC Software | L7T.DXF - for subwoofer hole cutouts |
|---|---|
| 3D Printing Software | L7T.SLDPRT - 3D-printing of grille spacers |
| Size (IN.,CM) | 12, 30 |
| Impedance (OHMS) | 4 DVC |
| Recommended Amplifier Power (watts RMS) | 600 |
| Peak Power (watts, per ANSI/CTA-2031-A) | 1200 |
| Sensitivity (dB 1w/1m) | 86.54 |
| Frequency Response (Hz) | 25-100 |
| Mounting Depth (IN.,CM) | 4-1/8, 10.5 |
| Mounting Cutout, Square (IN.,CM) | 11-1/16, 28.1 |
| Min Rec Sealed Box Volume (CU. FT., Liters) | .55, 15.6 |
| Max Rec Sealed Box Volume (CU. FT., Liters) | 1.25, 35.4 |
| Min Rec Vented Box Volume (CU. Ft., Liters)** | 1.75, 49.6 |
| Max Rec Vented Box Volume (CU. Ft., Liters)** | 2.25, 63.7 |
| What's in the box? | one 12-inch subwoofer, one owner's manual, two stickers |
Speaker specs
| Speaker Size (Mid) | 12, 30 |
|---|---|
| Impedance | 4 DVC |
| Sensitivity | 86.54 |
| RMS Power | 600 |
| Peak Power | 1200 |
Build & install
Weather & environment
Vehicle fitment
| Model | 46L7T124 |
|---|
