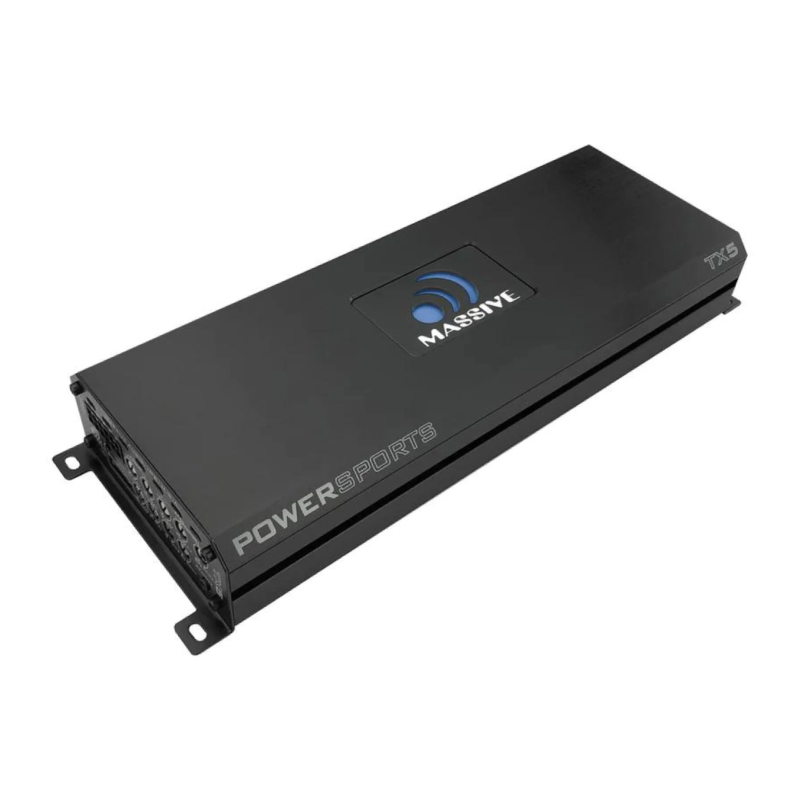

Massive Audio Marine amplifier TX5

Massive Audio TX5 TX Series 5-Channel 240W x 4 + 600W RMS at 2 Ohms, Full Range Class-D Marine Amplifier

We are a Massive Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• Class-D 5 Channel Marine Amplifier
• Speaker Harness
• User Manual

Compact Amplifier with Extreme Power and Advanced Protection

Experience extreme power in a compact footprint with a full-range digital design, conformal dura-coated 320°F epoxy PC boards for moisture, dust, and heat resistance, a 4-layer PCB design with SMD parts for enhanced durability, built-in noise reduction circuitry for clearer sound, and full MOSFET high-grade switching devices for efficient power management.

Bluetooth Streaming, with Optional Bass Remote

Enjoy wireless Bluetooth audio streaming (with optional UBT1 dongle), automatic power-on/off, 12V remote output for extra devices, adjustable bass boost, advanced protection for safety, and worldwide compliance with industry standards, plus the option for a remote bass control.

SPECIFICATIONS

Maximum Power : 480x2+1200 Watts

Low Frequency Response : 80-200 Hz

High Frequency Response : 20-3000 Hz

Number of Channels : 5

Frequency Response : 10-25000 Hz

Built In Crossovers : Yes

RMS Power Output : 240x4+600 Watts

Channel Separation : Yes

Amplifier Class : D

Fuse Rating : 80 A

FEATURES

Features:

Extreme Power in a Compact Footprint
Full Range Digital Design
Conformal Dura-Coated 320°F Epoxy PC Boards for moisture, dust, and heat resistance
4-Layer PCB Design with SMD parts for enhanced durability
Built-in Noise Reduction Circuitry for clearer sound
Full MOSFET High-Grade Switching Devices for efficient power management
Bluetooth Audio Streaming (with optional UBT1 dongle)
Auto Sensing Turn On/Off Function (Hi-Inputs)
12V Remote Output for external devices (Hi-Inputs)
-3 ~ +12DB Variable Bass Boost (40 Hz - 200 Hz)
Advanced 5-Way Protection Circuitry for safety and reliability
Worldwide Standards Compliant (RoHS, E-Mark, CTA-2006, CE)
UR1 Bass Remote Gain Control Input (optional)


Specifications:

Peak Output Power @ 14.4V: 480W x 2 + 1200W Max
1 Ohm RMS: N/A
2 Ohm RMS: 240W x 4 + 600W
4 Ohm RMS: 120W x 4 + 300W
4 Ohm Bridged: 480W x 2 + 300W
Input Level: 0.2~9.0V
Frequency Response: 10Hz~25KHz
THD at 4 Ohm Load (30% Rated Power): <0.03%
S/N Ratio: >90dB
Bass Boost: -6~12dB (Woofer Channel)
Minimum Load: 2 Ohm Stereo
Gain Remote: UR1 Gain Remote (Optional)
Dimensions: 1.6"H x 4.25"W x 12.17"L

UPC: 623169631597
Weight: 5
