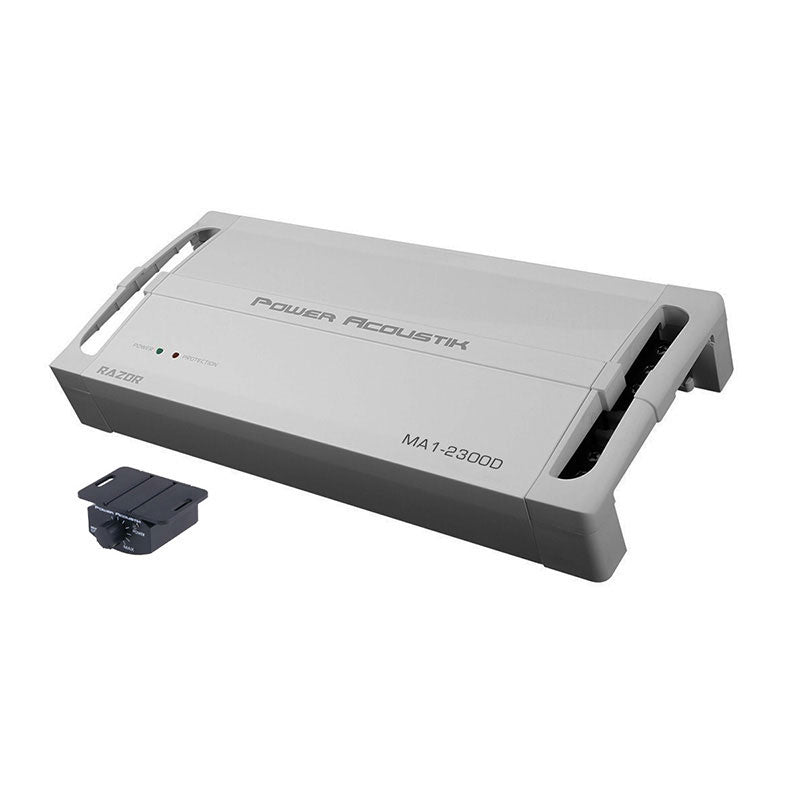

Power Acoustik Marine amplifier MA1-2300D

Power Acoustik MA1-2300D Razor Series 2300W Max Power, Class-D Mono Subwoofer Marine Amplifier with Remote Gain Control Included

We are a Power Acoustik authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• 2300W Class-D Mono Subwoofer Marine Amplifier
• Remote Dash Control
• User Manual

High-Performance Mono Amplifier

Introducing our powerful Class D mono amplifier, delivering 2300 watts of peak power for robust performance. With versatile speaker level inputs and easy installation, it operates at 2 ohms unbridged for compatibility with various setups. Customize your sound with adjustable low-pass and subsonic crossovers, plus a bass boost of up to 12 dB. Includes a remote bass/level controller for easy adjustments. Rest assured with a fuse rating of 25A x 2 for added safety. Elevate your car audio experience with our high-performance mono amplifier.

Reliable Performance

Experience seamless integration with our compact 4.75” chassis design, built to withstand the elements with splash-resistant conformal coated circuit boards. Enjoy pristine sound quality with a MOSFET power supply featuring audiophile-grade IRTM transistors. Operate in 2-ohm stable Class D monoblock mode for maximum efficiency, while direct short, thermal, and overload circuits ensure reliable performance in any situation.

Audio Adjustments At Your Fingertips

Enhance your car audio with our amplifier featuring versatile RCA and high-level inputs for seamless integration. Customize your sound with variable 12dB crossovers and a 10-50Hz subsonic crossover. Boost bass with a 12dB bass boost, and easily adjust settings with the included dash mount control module.

SPECIFICATIONS

Maximum Power : 2300 Watts

Low Frequency Response : 35-250 Hz

Number of Channels : 1

Built In Crossovers : Yes

RMS Power Output : 1x1400 Watts

Channel Separation : No

Amplifier Class : D

Fuse Rating : 2x25 A

FEATURES

Features:

Compact 4.75” Chassis Design for Installation Versatility
Splash Resistant Conformal Coated Circuit Boards
MOSFET Power Supply w/ Audiophile Grade IRTM Transistors
Military Grade SMT PCB Maintains Dynamic Performance
2-Ohm Stable Class D Monoblock Operation
Direct Short, Thermal, & Overload Circuits Protect Amplifier
200mv-6V Low-Level RCA Inputs
High-Level Input w/ Signal Sense Auto Turn-on
Variable 12dB High Pass & Low Pass Crossovers
10-50Hz Variable 12dB Subsonic Crossover Protects Subwoofers
12dB Bass Boost Increases Low Octave Harmonics
Dash Mount Gain Control Module Included


Specifications:

Amplifier Class: D
Number of Channels: 1 - Mono
Total Peak Power Output: 2300 watts
Maximum Input Gauge Size: 8 AWG
Minimum Impedance Unbridged: 2 ohms
Minimum Impedance Bridged: Not Bridgeable
Speaker Level Inputs: Yes
Preamp Outputs: No
Built-in Crossover:
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency: 35 - 250 Hz
Subsonic Filter: 10 - 50 Hz
Bass Boost: 0 - 12 dB
Remote bass/level controller: Yes
Fuse Rating: 25A x 2

UPC: 709483050693
Weight: 5
Authorized Internet Dealer




Warranty: 2 Year(s) Warranty.This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
